Single Plate Check Valve

Single Plate Check Valve – Simplified Wafer Check Design

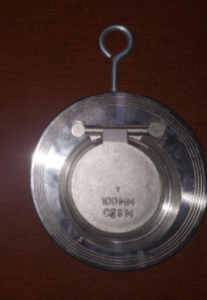

Single plate check valves employ a single spring-loaded disc mounted on a hinge pin, offering simplified construction compared to dual-plate checks while maintaining wafer-style compact installation and spring-assisted non-slam closure. The design is particularly popular in European and Asian markets for HVAC, building services, and light industrial applications—less common in African oil & gas and mining sectors where dual-plate checks dominate due to superior flow characteristics and proven reliability in abrasive services.

The single disc creates asymmetric flow pattern (versus symmetric dual-plate flow) that may cause vibration or instability at certain flow rates. However, for clean water HVAC systems, fire protection, and building services applications across African commercial and institutional facilities, single-plate checks provide adequate performance at lower cost than dual-plate alternatives (typically 20-30% price advantage).

Single Plate vs. Dual Plate Comparison

Choose Single Plate When: (1) HVAC, fire protection, or building services in clean water, (2) Lowest cost wafer check for non-critical applications, (3) Sizes DN 50-300 (2″-12″) in light industrial service, (4) European/Asian specifications requiring single-plate design.

Choose Dual Plate When: (1) Oil & gas, mining, or industrial process applications, (2) Flow stability critical—symmetric dual-plate flow reduces vibration, (3) Proven reliability priority for African infrastructure with difficult maintenance access, (4) Sizes above DN 300 where dual-plate flow characteristics superior.

See Dual Plate Check Valve for comprehensive coverage of wafer check technology. Parent category: Check Valve.
