1 Piece Ball Valve Manufacturer and Supplier in Africa

Introduction

Due to the importance of space saving, simplicity, and prevention of any form of leakages, the 1 Piece Ball Valve is designed by combining the valve body in one casting hence eliminating all body joints. The 1 Piece Ball Valve operates on a quarter turn basis and is used for quick shut off of various fluids such as liquid, gas, steam and process media in utility lines, chemical industries, oil and gas industry, and water treatment plants. As a top 1 Piece Ball Valve Manufacturer and Supplier in Africa, we manufacture our 1 Piece Ball Valves in different grades, classes, and end connections in Nigeria, Egypt, South Africa, Kenya, Ghana and other African countries.

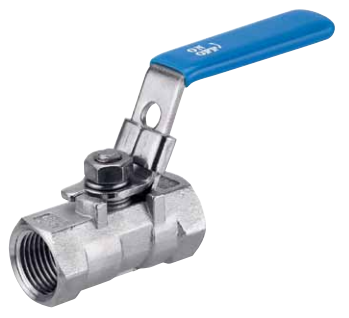

What is a 1 Piece Ball Valve?

The 1 Piece Ball Valve is a rotary valve specifically designed to initiate or stop the flow of fluid by the rotating motion of a ball that has a hole bored through its middle. The rotation of the ball through 90 degrees will align the hole with the pipe in order to facilitate the flow of the fluid, or position the hole perpendicularly with respect to the pipe in order to stop the flow.

Product Specifications

The valve body is manufactured in:

• Carbon Steel – ASTM A216 WCB

• Stainless Steel – ASTM A351 CF8 / CF8M

• Duplex Stainless Steel – ASTM A995 Grade 4A

• Super Duplex Stainless Steel – ASTM A995 Grade 5A / Grade 6A

• Alloy Steel – ASTM A217 WC6 / WC9

• Ductile Iron – ASTM A536 Grade 65-45-12

Additional features include:

• Precision-machined stainless steel ball and stem

• PTFE, RPTFE, or reinforced seat materials

• Quarter-turn operation for quick opening and closing

• Threaded, Socket Weld, and Butt Weld end connections

• Manual operation with optional pneumatic or electric actuators

Design & Construction

• Size Range: DN15 to DN100 (½" to 4")

• Pressure Ratings: Class 150, Class 300, PN16, PN25, PN40

• Design Standards: ASME B16.34, API 608, ISO 17292

• Testing Standards: API 598

• End Connections: Threaded, Socket Weld, Butt Weld

• Operation: Manual, Pneumatic Actuated, Electric Actuated

Industrial Applications

• Oil & Gas – Isolation of process lines, storage systems, and utility pipelines.

• Chemical Processing – Control and isolation of corrosive and non-corrosive process media.

• Petrochemical – Flow isolation in refining, processing, and distribution systems.

• Power Generation – Utility water, steam, and auxiliary piping applications.

• Water & Wastewater Treatment – Water distribution, pumping stations, and treatment facilities.

• Mining – Slurry water, process water, and utility service pipelines.

• Marine – Ballast systems, cooling water lines, and onboard piping networks.

The compact one-piece body construction and quarter-turn operation make these valves suitable for utility lines, compressed air systems, water distribution networks, steam services, and process piping where quick and secure shut-off is required.

Benefits & Features

• Compact one-piece body construction with fewer leak paths

• Quarter-turn operation for fast opening and closing

• Available in full-port and reduced-port configurations

• Suitable for manual, pneumatic, and electric actuation

• Wide selection of body materials and seat options

• Manufactured in multiple pressure classes and end connections

• Designed in accordance with international standards

Why African Valve?

African Valve produces 1 Piece Ball Valves in line with international standards of design and manufacture to meet the needs of a particular project. All the valves are tested for dimensional measurement, hydrostatic shell test, and seat leakage test before shipment. Material Test Certificate (MTC), inspection certificate, and additional documents can be supplied.

Supply & Export Information

African Valve supplies 1 Piece Ball Valves for industrial, infrastructure, and process projects across Nigeria, Egypt, South Africa, Kenya, Ghana, and other African markets, in addition to international export destinations. Valves are available in multiple material grades, pressure classes, end connections, and actuation options to meet customer specifications and application requirements.
