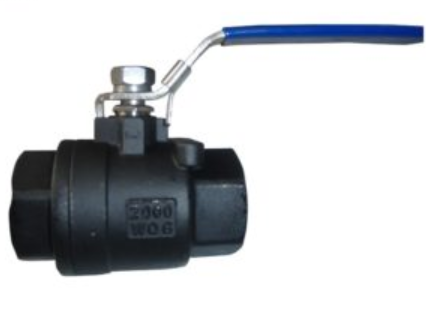

2 Piece Forged Steel Ball Valve

2 Piece Forged Steel Ball Valve

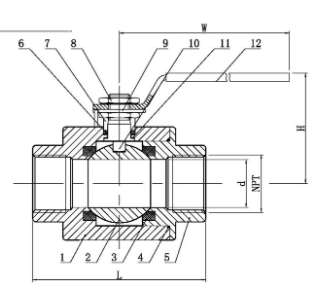

1. Body: A105, F304, F316, F304L, F316L

2.?Ball: F304, F316, F304L, F316L

3. Seat: PTFE, RPTFE

4. Gasket: PTFE

5. Bonnet: A105, F304, F316, F304L, F316L

6. Packing: PTFE

7. Packing Gland: SS304

8. Nut: A194B7, A1948

10. Stem: SS316, SS304

11. Thrust Washer: RPTFE

12. Handle: PVC

Nominal Size: 1/4″ to 3″

Nominal Pressure: Class800 to Class2500

Design Standard: ASME B16.34

Face to Face: DIN3202

Test and Inspection: API598

Working Temperature: -20?~150?

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm
