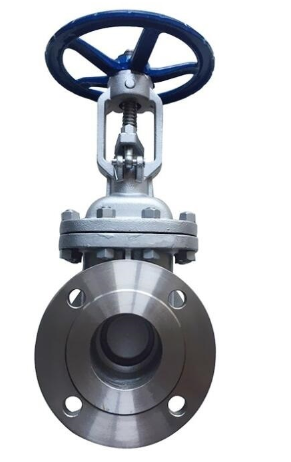

Alloy Flanged Gate Valve

$649.00$24,389.00

13% Off
Close
Price Summary
  • $750.00
  • $649.00
  • 13%
  • $649.00
  • Overall you save $101.00 (13%) on this product
In Stock
Clear
Compare
Description

Alloy Flanged Gate Valve

Body: Alloy 20, WC6, WC9

Gate, Disc: Alloy 20, 13Cr

Stem: Alloy 20, 13Cr

Seat Ring: A105/Nylon, Stellite

Connections: Flanged, Threaded, Socket welded, ButtWeld

Operations: Handwheel, Electric Actuated, Pneumatic Actuated

Nominal Size: DN15 to DN400

Nominal Pressure: PN 1.0 to 2.5Mpa, Class 150 to Class2500

Temperature: -198?c to 450?c

Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS1414

Face to Face Dimension: ANSI B16.10, API 6D

Flanged End Dimension: ANSI B16.5, MSS-SP-44 to API605

Butt welded end: ANSI B16.5

Inspection and Test: API 598, API 6D

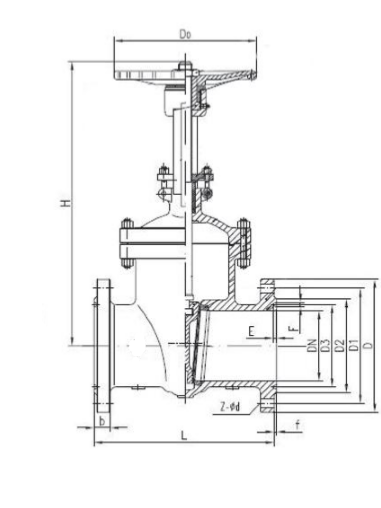

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm

DNLHDD1
151301759565
2015018010575
2516021011585
32180280140100
40200350150110
50250358165125
65270375185145
80280433200160
100300502220180
125325612250210
150350676285240
200400820340295
250450969405355
3005001142460410
3505501280520470
4006001452580525
Additional information
Body Material

Alloy 20, Wc6, Wc9

Class

150, 1500, 2500, 300, 900

Size

1 1/2", 1", 10", 14", 2 1/2", 2", 3", 4", 5", 6", 8"
