Aluminium Bronze Lug Butterfly Valve Manufacturer  in Africa

Large seawater lines need an isolation valve that is compact, corrosion resistant and easy to remove from the piping system. An Aluminium Bronze Lug Butterfly Valve uses a quarter-turn disc inside a body fitted with threaded lugs, allowing each pipe flange to be bolted independently. African Valve is a prominent Aluminium Bronze Lug Butterfly Valve Manufacturer  in Africa, supplying Nigeria, Egypt, South Africa, Kenya and Ghana and supporting offshore, marine and desalination projects in the Middle East, Europe and other export regions.

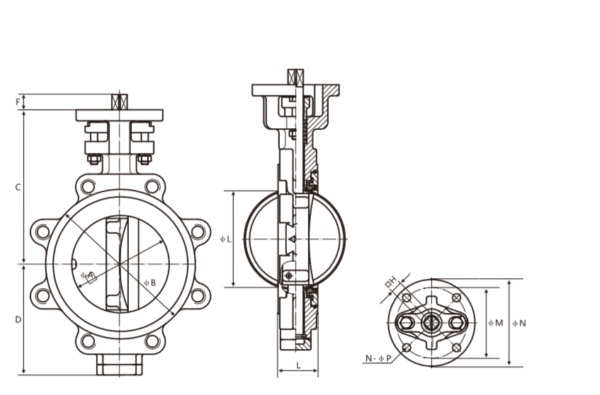

What Do the Lugs Add to the Design?

Threaded lugs are positioned around the body circumference. Bolts enter from both flange sides and secure the valve without passing completely through the assembly. This improves centring and allows one side of the pipework to be disconnected more easily during maintenance.

Some lug valves are suitable for dead-end service, where one flange is removed and the valve retains pressure from the connected side. This capability must be confirmed from the selected design because the allowable dead-end pressure may be lower than the normal bidirectional rating.

Disc Position and Seat Contact

The shaft rotates the disc through approximately 90 degrees. When open, the disc remains parallel to the flow but still occupies part of the bore. The pressure drop is therefore higher than that of a full-bore ball valve, although the butterfly valve is considerably lighter in larger sizes.

Concentric designs use a centrally positioned shaft and normally rely on an elastomer or PTFE seat. Double-offset construction moves the shaft away from the disc and pipe centreline, allowing the disc to lift off the seat shortly after opening. This reduces rubbing and can improve cycle life.

The valve can be used for isolation and limited regulation. It should not be assumed to provide precise control unless the disc profile, actuator and operating range have been selected for that purpose.

Aluminium Bronze in Marine Systems

Bodies and discs are commonly cast from ASTM B148 C95800 or C95500. Nickel-aluminium bronze is used in seawater equipment because it resists general corrosion, cavitation and erosion when properly manufactured and applied.

The shaft, bearings, fasteners and seat retainer require equal attention. Dissimilar materials can form a galvanic couple in seawater. The complete trim arrangement should therefore be reviewed against salinity, temperature, chlorination and expected flow velocity.

EPDM, NBR, PTFE and reinforced PTFE seats may be considered depending on the fluid. No single seat material is suitable for every seawater, firewater or chemical duty.

Technical Specifications

Size Range: DN50 to DN1200
Pressure Ratings: Class 150 to Class 300; PN10 to PN40
Design Standards: API 609 and ASME B16.34
Testing Standard: API 598
End Connections: Lug type for ASME B16.5 or EN flanges
Operation: Lever, gearbox, electric, pneumatic or hydraulic actuator

Engineering Advantages

• Independent flange bolting supports easier maintenance.

• Short face-to-face length reduces installation space.

• Quarter-turn travel provides rapid operation.

• Aluminium bronze wetted parts suit seawater and brine.

• Offset options reduce seat friction.

• ISO 5211 mounting can simplify actuator installation.

Marine and Industrial Applications

The valve is used in ballast systems, ship cooling, offshore firewater, desalination plants, seawater intake lines, condenser cooling and coastal utility networks. It is especially practical in larger diameters where gate or ball valves would add significant weight.
