Brass Flanged Ball Valve
| Body Material | |
| Class | |
| Size |
Brass Flanged Ball Valve
Body: Brass
Cap: Brass
Ball: Brass
Seat: PTFE
Stem: Brass Rod
O-Ring: NBR
Handle: Steel
Blow-out proof stem
Nominal Size: DN25 to DN100
Nominal Pressure: PN16,Class150
End Connection: Flanged
Working Medium: Water, Oil

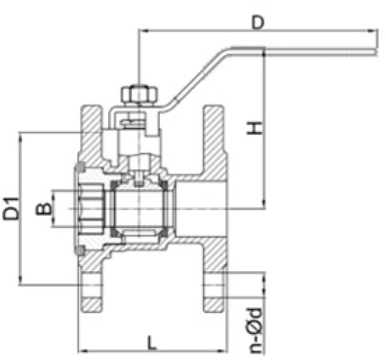

Dimension Unit: mm
| DN | L | H | D | D1 | B | n-фd |
| 25 | 83 | 90 | 133 | 85 | 20 | 4-14 |
| 32 | 95.5 | 82 | 158 | 100 | 25 | 4-18 |
| 40 | 98 | 86 | 158 | 110 | 32 | 4-18 |
| 50 | 99 | 93.5 | 175 | 125 | 40 | 4-18 |
| 65 | 106 | 120.5 | 213 | 145 | 50 | 8-18 |
| 80 | 120.5 | 135.5 | 213 | 160 | 65 | 8-18 |
| 100 | 134 | 154 | 243 | 180 | 80 | 8-18 |
