Bronze Flanged Globe Valve

$57.00$765.00

42% Off
Close
Price Summary
  • $240.00
  • $57.00
  • 42%
  • $57.00
  • Overall you save $183.00 (42%) on this product
In Stock
Clear
Compare
Description

Bronze Flanged Globe Valve

Body: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Disc: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Bonnet: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Stem: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Packing: Graphite

End Connection: Flanged, Buttweld, Socketweld

Operation: Handwheel, Electric Actuated, Pneumatic Actuated

Nominal Size: DN50 to DN500

Nominal Pressure: Class150 to Class2500

Design and Manufacture Standard: API 6D, API 608, BS5351

Face to Face Dimension: ANSI B16.10, API 6D

Flanged End Connection: ANSI B16.5

Buttweld End: ANSI B16.25

Inspection and Test: API 598, API 6D

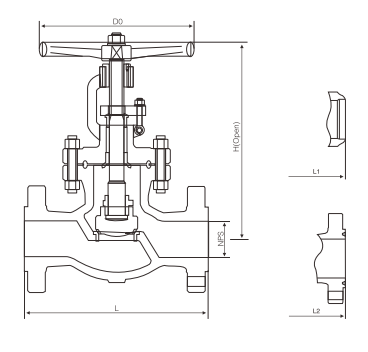

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm

Class150

DNLL1L2HD0
50203203203380180
65216216216445240
80241241241515280
100292292292535280
150406406406560320
200495495495615320
250622622622815400
300698698698910450
3507877877871230500
4009149149141450600



Additional information
Body Material

Bronze

Class

150/PN16

Size

1 1/2", 1 1/4", 1", 1/2", 2 1/2", 2", 3", 3/4", 4"
