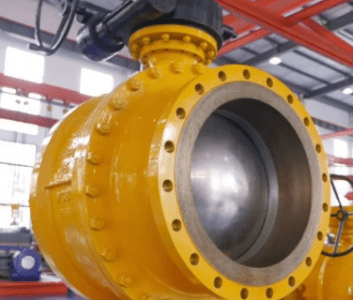

Casting Trunnion Ball Valve
Body: WCB, CF8, CF8M, CF3, CF3M
Ball: Carbon Steel, Stainless Steel
Stem: Stainless Steel
O Ring: VITON
Trunnion: Carbon Steel, Stainless Steel
Seat Ring: PTFE
Gland: Stainless Steel
Gasket: Stainless Steel + Graphite
Nut: A194 2H
Spring: Stainless Steel
Bonnet: WCB, CF8, CF8M, CF3, CF3M
Nominal Diameter: DN100 to DN400
Nominal Pressure: Class150 to Class2500, PN10 to PN64
End Connection: Flanged
Dimension
Class150Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Unit: mm
| DN | L | d | H | H1 | W |
| 100 | 229 | 100 | 250 | 135 | 300 |
| 125 | 356 | 127 | 260 | 165 | 300 |
| 150 | 394 | 150 | 285 | 193 | 400 |
| 200 | 457 | 201 | 325 | 240 | 400 |
| 250 | 533 | 252 | 370 | 293 | 500 |
| 300 | 610 | 303 | 415 | 340 | 500 |
| 350 | 686 | 334 | 455 | 372 | 600 |
| 400 | 762 | 385 | 500 | 415 | 600 |
