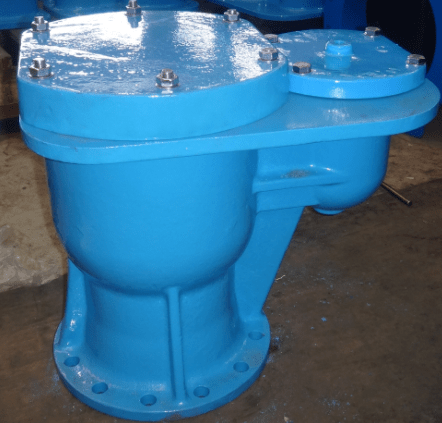

Double Orifice Kinetic Air Valve

Double Orifice Kinetic Air Valve

Body: Cast iron, Ductile Iron, Stainless Steel

Bonnet: Cast iron, Ductile Iron, Stainless Steel

Cap : Cast iron, Ductile Iron

Float Ball: Stainless Steel

Stem: Stainless Steel

Stem Yoke: Stainless Steel

Plug: Stainless Steel

Gasket: NBR, EPDM

Top Plug: NBR+Stainless Steel

Plug Sleeve: Stainless Steel

Nominal Diameter: DN40 to DN200

Nominal Pressure: Class150 to Class300, PN16 to PN40

Design and Manufacture Standard: DIN3352

Flanged End Dimension: DIN2501

Inspection and Test: BS6755

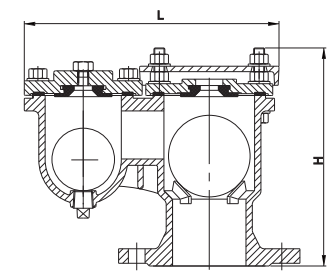

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm

PN16
