Duplex 3 Piece Ball Valve Manufacturer in Africa

Produced water, brine and chloride-bearing process lines can cause pitting and stress-corrosion cracking in ordinary stainless-steel valves. A three-piece duplex ball valve adds higher strength, corrosion resistance and easier access to the seats and ball. African Valve is a leading Duplex 3 Piece Ball Valve Manufacturer  in Africa, supplying South Africa, Nigeria, Egypt, Angola, African countries and export markets.

Why Duplex Stainless Steel Is Used

The structure of duplex stainless steel is a combination of ferrite and austenite. The bodies that have been cast are usually selected based on the ASTM A995 4A grade, whereas the wrought items may be based on the ASTM A182 F51. Both of these materials offer greater strength compared to normal 300 series stainless steel along with better pitting and stress-corrosion cracking resistance from chloride. ASTM A995 provides standards for duplex castings used in pressure containing valve components including Grade 4A among others. Selection requires application evaluation. Chloride, temperature, oxygen, pH, crevices, and fabricating procedures affect the lifespan of the product.

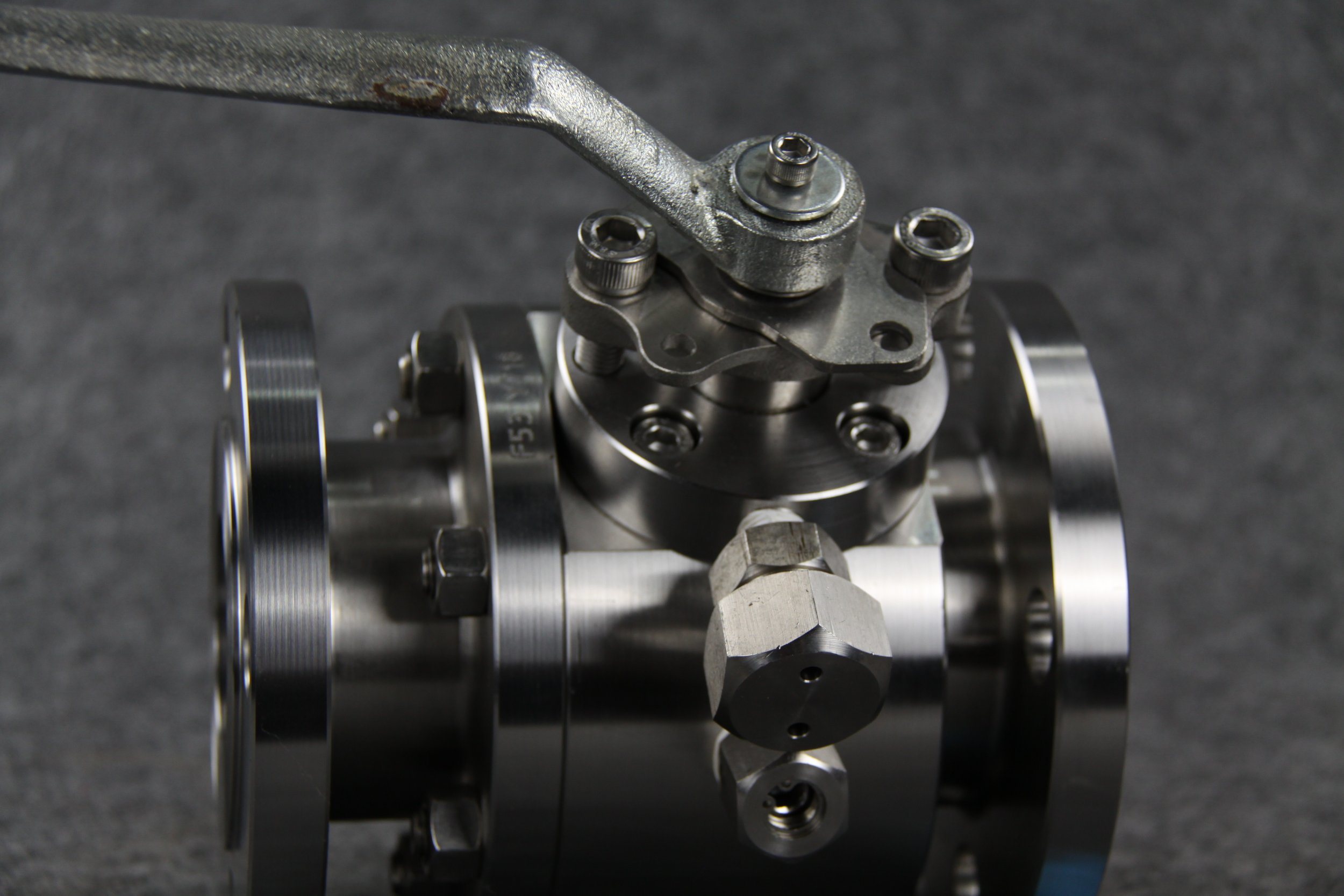

Maintainable Three-Piece Design

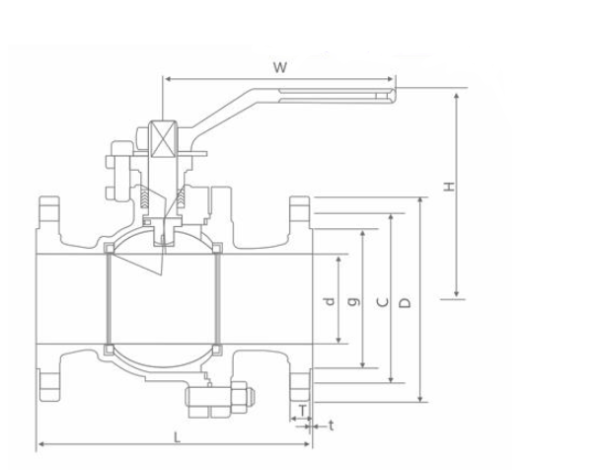

The valve uses a central body held between two end pieces. The ball, seats and seals are contained in the centre section, allowing inspection or replacement with less disturbance to the connected pipework. This suits process skids and lines where deposits or seat changes are expected.The stem turns the ball through 90 degrees. When the port aligns with the pipeline, flow passes through the valve; rotating it across the line gives shutoff. Full-bore construction keeps the opening close to the pipe bore, while reduced-bore construction gives a smaller body. Continuous throttling is not recommended unless the valve is designed for control duty.

Trim, Seat and Stem Arrangement

The body and end pieces may be cast in ASTM A995 Grade 4A or manufactured from wrought duplex material according to size and design. The ball, stem, gland parts and seat retainers should use F51, Grade 4A or another compatible grade. Corrosion resistance must be considered for the wetted assembly, not only the body.PTFE and RPTFE seats suit clean process water and many chemical services. PEEK may be selected for higher pressure or temperature, while metal seating is considered for abrasive particles, erosion or frequent cycling. Optional features include a blowout-resistant stem, anti-static device, fire-tested design, cavity-pressure relief and ISO 5211 actuator mounting.

Technical Specifications

Size Range: DN15 to DN300

Pressure Ratings: ASME Class 150 to Class 600

Design Standards: API 608, ISO 17292 and ASME B16.34

Testing Standard: API 598

End Connections: Flanged, threaded, socket weld or butt weld

Operation: Lever, gearbox, pneumatic actuator or electric actuator

Body Materials: ASTM A995 Grade 4A or ASTM A182 F51

Body Construction: Three-piece

Bore Type: Full bore or reduced bore

Seat Options: PTFE, RPTFE, PEEK or metal seat

API 608 covers metal ball valves with flanged, threaded and welding ends. ASME B16.34 provides pressure-temperature, material, examination, testing and marking requirements for applicable designs.

Engineering Advantages

The three-piece arrangement makes internal maintenance more practical than on a one-piece valve. Duplex strength can support compact pressure-containing parts where permitted by the design standard. Quarter-turn operation gives fast isolation, but actuator torque must be calculated from valve size, differential pressure, seat friction and temperature.

Industrial Applications

Duplex three-piece ball valves are used in produced-water treatment, desalination support systems, chemical dosing, seawater utilities, pulp and paper plants, marine service and selected oil and gas lines. For severe warm seawater or concentrated brine, Super Duplex may be more suitable after a corrosion review.
