Electric Actuated Three Piece Ball Valve

$130.00$1,498.00

43% Off
Close
Price Summary
  • $230.00
  • $130.00
  • 43%
  • $130.00
  • Overall you save $100.00 (43%) on this product
In Stock
Clear
Compare
Description

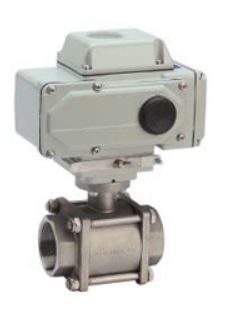

Electric Actuated Three Piece Ball Valve

Body Material: Carbon Steel, CF8M

Ball Material: Stainless Steel

Seat: PTFE, RTFE, PPL

Nominal Diameter: DN15 to DN200

Nominal Pressure: 1000PSI

End Connections: Screwed, Threaded Or Welded, Buttweld

Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V

Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V

Power Supply: 24V AC, 24V DC, 110V AC, 230V AC

Actuation Type: Electric Actuated

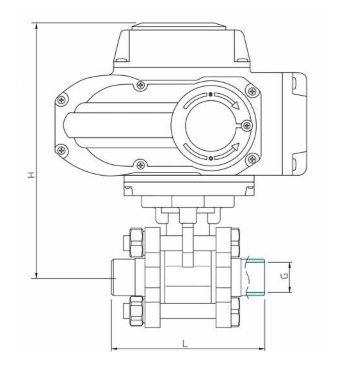

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm

DNGLH
151572130
202082130
252590165
3232112165
4038120190
5050145190
6565185250
8080210250
Additional information
Body Material

Carbon Steel, CF8M

Pressure

1000PSI

Voltage

110V AC, 230V AC, 24V AC, 24V DC

Size

1 1/2", 1 1/4", 1", 1/2", 2 1/2", 2", 3", 3/4"
