Hastelloy C276 2 Piece Screwed Ball Valve Manufacturer in Africa

Compact chemical lines often have limited room for flanges, long face-to-face dimensions or heavy valve assemblies. In these installations, a threaded two-piece ball valve provides quick isolation without occupying unnecessary space. African Valve is a leading Hastelloy C276 2 Piece Screwed Ball Valve Manufacturer  in Africa, supplying South Africa, Nigeria, Egypt, Angola, other African countries and international process projects.

Why C276 Is Used in Small-Bore Chemical Lines

UNS N10276 Hastelloy C276 is a nickel-based alloy containing chromium and molybdenum, used for applications where regular stainless steel might be susceptible to corrosion. Such an alloy would be ideal when dealing with situations where there could be a presence of chlorides, reducing acids, or any other impurities that could cause pitting, crevice corrosion, or stress corrosion cracking. The alloy is also good for applications where corrosion resistance is important even in the welded sections, owing to the low levels of carbon and silicon in it. However, it is not suitable for all chemicals automatically.

Two-Piece Screwed Construction

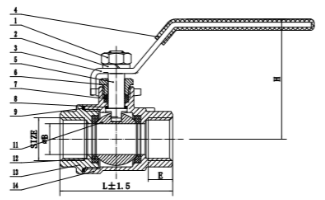

The pressure-containing body is made in two sections. These sections retain the ball, seats and stem assembly while keeping the overall valve compact. Female threaded ends allow the valve to connect directly to small-bore piping without separate flanges.A quarter-turn of the lever rotates the ball from open to closed. Full-bore construction is useful where pressure loss, drainage or line cleaning matters. Reduced-bore designs give a smaller body where the reduced internal passage is acceptable.Threaded construction also requires careful installation. Pipe torque should be applied through the correct wrench flats rather than through the body joint. Excess thread sealant can enter the bore, contaminate the seats or interfere with ball movement.

Body, Ball and Seat Materials

The body may be manufactured from wrought Hastelloy C276 or another approved C276 product form suitable for the design. The ball, stem, gland parts and seat retainers should use C276 or a verified compatible material. A lower-alloy stem inside a C276 body can become the first point of corrosion.

PTFE and RPTFE seats suit many clean corrosive fluids. PEEK may be selected where higher pressure or temperature requires greater mechanical strength. Metal seating can be considered for abrasive particles, severe temperatures or frequent operation. Seal compounds must be reviewed separately because the alloy body does not protect an incompatible elastomer.

Technical Specifications

Size Range: DN8 to DN50

Pressure Ratings: Project-specific threaded ratings

Design Standards: API 608, ISO 17292 and ASME B16.34

Testing Standard: API 598

End Connections: NPT, BSPP or BSPT female threads

Operation: Lever, pneumatic actuator or electric actuator

Body Material: Hastelloy C276 / UNS N10276

Bore Type: Full bore or reduced bore

Seat Options: PTFE, RPTFE, PEEK or metal seat

Actuator Mounting: ISO 5211 where required

Performance Features

The short body makes the valve suitable for chemical dosing skids, sampling lines and compact utility systems. Quarter-turn operation gives fast shutoff, while a full-bore port keeps flow restriction comparatively low. Depending on the design, a blowout-resistant stem, anti-static device, locking lever or fire-tested arrangement may be supplied.

Applications

Typical services include chemical dosing, acid transfer, chlorine-related processing, corrosive sampling lines, pollution-control units, laboratory systems and offshore chemical injection. Threaded construction is normally used in smaller sizes where the valve can be safely removed without disturbing major pipeline sections.

Inspection and Final Checks

Material Test Certificates confirm traceability of the pressure-containing parts. PMI may be performed on the body, ball and stem. The completed valve is checked for thread form, bore alignment, stem movement, shell pressure and seat leakage. Operating torque may also be verified when an actuator is specified.

Supply for Compact Chemical Systems

African Valve supplies Hastelloy C276 two-piece screwed ball valves for chemical and industrial projects across Africa. The enquiry should state the exact thread standard, fluid composition, pressure, temperature, seat material, bore requirement and actuation method.
