Monel Gate Valve

$1,031.00$13,975.00

9% Off
Close
Price Summary
  • $1,135.00
  • $1,031.00
  • 9%
  • $1,031.00
  • Overall you save $104.00 (9%) on this product
In Stock
Clear
Compare
Description

Monel Gate Valve

Body: Monel 400, Monel K500, Monel 600, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M,

Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M

Bonnet, Gate: Monel 400, Monel K500, Monel 600,Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20,

CN7M, Hastelloy, Carbon Steel, WC6, WC9, ?C5, C12, LCB, CF3M

Trim: SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Steel, Super

Duplex Stainless Steel

Gland Packing: Graphite, PTFE

End Connections: Flanged, Socketweld, Buttweld

Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated

Nominal Size: DN50 to DN600

Nominal Pressure: PN 1.0 to 25 Mpa, Class 150 to 2500

Design and Manufacture Standard: ANSI B16.34, API 600, API 6D, API 603, BS1414

Face to Face Dimension: ANSI B16.10, API 6D

Flanged End: ANSI B16.5, MSS-SP-44 to API605

Butt welded End: ANSI B16.5

Inspection and Test: API 598, API 6D

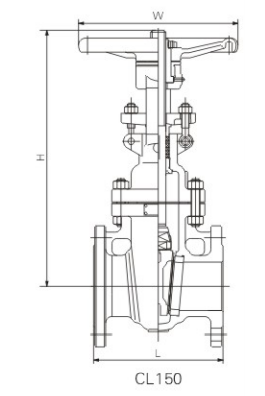

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm

Class 150

DNLL1L2HW
50178191216341200
65190203241371200
80203216283402250
100229241305472280
125254267381530300
150267279403587300
200292305419743350
250330343457904400
3003563685021047450
3503813945721172500
4004064196101297600
4504324456601433680
5004574707111590750
6005085218131898800



Additional information
Body Material

Monel

Class

150, 300

Size

1", 2", 3"
