Pneumatic Actuated 2 Piece Ball Valve Manufacturer in Africa

Product Introduction

The automatic process pipelines will need the valves to give quick shut-off capability, effective sealing and effective remote actuation. The Pneumatic Actuated 2 Piece Ball Valve integrates the two-piece ball valve with pneumatic actuator to give the valve quick quarter-turn actuation through the use of compressed air. The actuator ensures that the valve will not require manual actuation thus makes the valve appropriate for automatic processes. African Valve is a Leading Pneumatic Actuated 2 Piece Ball Valve Manufacturer in Africa, manufacturing and supplying Pneumatic Actuated 2 Piece Ball Valves in various material grades, pressure classes, end connections, seat materials, and actuator configurations for projects across Nigeria, Egypt, South Africa, Kenya, Ghana, and other African countries, along with international export destinations.

How Does a Pneumatic Actuated 2 Piece Ball Valve Improve Process Automation?

The valve does not use an electrical motor to perform its operations; rather, the pneumatic actuator utilizes compressed air that is turned into rotational energy to move the ball. Once the compressed air is supplied to the actuator, it turns the ball through 90 degrees in order to bring it parallel to the pipe line or turn it perpendicular to the piping system. This actuation method makes the valve fast, responsive and reliable, hence its application in automation lines and emergency systems.

Valve Construction

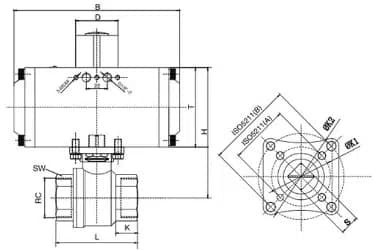

The valve consists of a 2 piece body, floating ball, blow-out proof stem, valve seats, ISO mounting pad, and pneumatic rack-and-pinion or scotch yoke actuator. Depending on operational requirements, the actuator may be supplied as double acting or spring return. Additional accessories such as solenoid valves, limit switches, position indicators, air filter regulators, and positioners can be incorporated to support automated control systems.

Materials & Construction

The valve is manufactured using:

Carbon Steel – ASTM A216 WCB
Stainless Steel – ASTM A351 CF8 / CF8M
Forged Stainless Steel – ASTM A182 F304 / F316
Duplex Stainless Steel – ASTM A995 Grade 4A
Super Duplex Stainless Steel – ASTM A995 Grade 5A

Construction features include:

Two Piece Body Design
Floating Ball Construction
Blow-out Proof Stem
PTFE, RPTFE, PEEK, or Metal Seat Options
ISO 5211 Mounting Pad
Double Acting or Spring Return Pneumatic Actuator
Solenoid Valve, Limit Switch, and Positioner Options

Technical Specifications

Size Range: DN15 to DN300 (½" to 12")
Pressure Ratings: Class 150, 300, 600 | PN16, PN25, PN40
Design Standards: API 608, ASME B16.34, ISO 17292
Testing Standard: API 598
End Connections: Threaded, Socket Weld, Butt Weld, Flanged
Operation: Pneumatic Actuated

Industrial Applications

Pneumatic Actuated 2 Piece Ball Valves are widely used in:

Oil and Gas Processing
Chemical Plants
Water Treatment Facilities
Petrochemical Industries
Compressed Air Systems
Power Generation Plants
Industrial Automation Systems
Process Utility Networks

Product Features
Fast pneumatic quarter-turn operation
Suitable for high-cycle automated applications
Bubble-tight shut-off with floating ball design
Available in double acting and spring return configurations
Compatible with PLC, DCS, and SCADA systems
Manufactured according to internationally recognized engineering standards
Manufacturing & Inspection
Pneumatic Actuated 2 Piece Ball Valves are manufactured according to international engineering standards and customer project specifications. Every valve undergoes dimensional inspection, hydrostatic shell testing, seat leakage testing, pneumatic actuator functional testing, torque verification, operational testing, and final quality inspection before dispatch. Material Test Certificates (MTC), pressure test reports, actuator inspection records, and supporting documentation are available to satisfy engineering, procurement, and project compliance requirements.
Supply Across Africa
African Valve supplies Pneumatic Actuated 2 Piece Ball Valves to refineries, water treatment facilities, chemical industries, power plants, automation projects, and industrial processing systems throughout Nigeria, Egypt, South Africa, Kenya, Ghana, and other African countries. Valves are available in multiple material grades, pressure classes, end connections, seating options, and pneumatic actuator configurations to meet project-specific automated flow isolation requirements.
