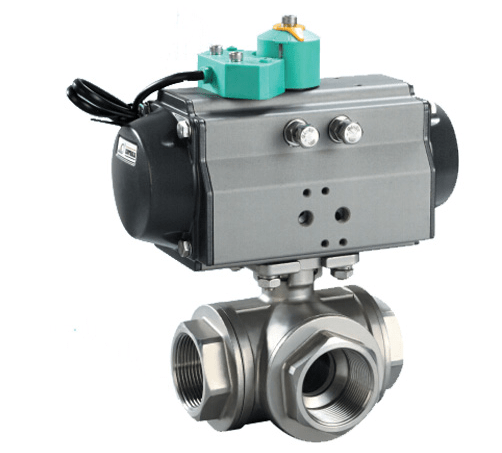

Pneumatic Three Way Ball Valve
Body material: CF8M
Stem: SS304
Connection type: Screwed, Buttweld, Threaded or Welded
Nominal Diameter: DN15 to DN50
Nominal Pressure: PN1.6 to PN6.3MPa
Structure?type:?Floating?ball?core?3?way?T?type,?3?way?L?type
Stem?material:?304

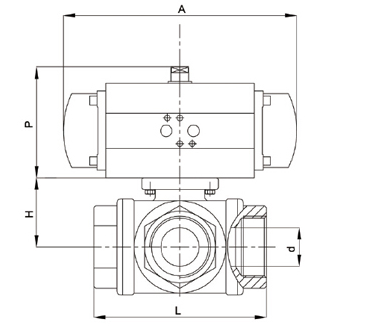

Dimensions
| DN | inch | ?3 Way | Actuator | |||
| d | L | H | A | p | ||
| 15 | 1/2 | 11 | 79 | 42 | 115 | 158 |
| 20 | 3/4 | 15 | 88 | 49 | 115 | 158 |
| 25 | 1 | 20 | 108 | 60 | 137 | 177 |
| 32 | 1 1/4 | 25 | 124 | 63 | 137 | 177 |
| 40 | 1 1/2 | 32 | 135 | 74 | 147 | 196 |
| 50 | 2 | 40 | 164 | 83 | 165 | 226 |
| Body Material | CF8M |
|---|---|
| Pressure | 1000PSI, 800PSI |
| Connection Type | Buttweld, Socket weld, Threaded or Welded |
| Actuation Type | Double Acting, Spring Return |
| Size | 1 1/2", 1 1/4", 1", 1/2", 1/4", 2", 3/4", 3/8" |
