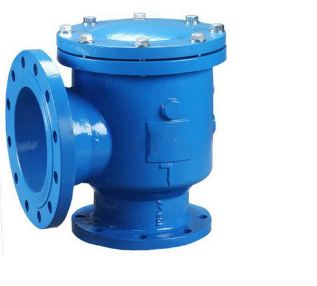

Suction Diffuser

Body Material
Class
Size

Suction Diffuser

1.Body: Cast Iron, Ductile Iron

2. O-Ring: EPDM, NBR

3. Bonnet: Ductile Iron

4. Screw: Copper Alloy, Stainless Steel

5. Filter: SS304

6. Nut: SS304

7. Ball Valve: Alloy, Stainless Steel

Nominal Diameter: DN50*DN40 to DN500*DN500

Nominal Pressure: Class125, Class150, Class300, PN16, PN25, PN40

End Connection: Flanged

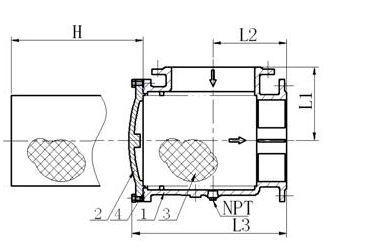

Dimensions

NPS DN L1 L2 L3 H NPT Kv Cv
2?*1 1/2? 50*40 114.3 114.3 253 125 3/4? 18 21
2?*2? 50*50 114.3 114.3 253 125 3/4? 64.5 75.2
2 1/2?*2? 65*50 127 127 270 125 3/4? 64.5 75.2
2 1/2?*2 1/2? 65*65 127 127 270 138 3/4? 64.5 75.2
3?*2? 80*50 139.7 139.7 270 138 3/4? 109 127.2
3?*2 1/2? 80*65 139.7 139.7 284 143 3/4? 109 127.2
3?*3? 80*80 139.7 139.7 284 143 3/4? 143 166.9
4?*3? 100*80 165 165 328 166 1? 143 166.9
4?*4? 100*100 165 165 334 172 1? 252 294.1
5?*4? 125*100 190.5 190.5 345 172 1? 252 294.1
5?*5? 125*125 190.5 190.5 394 223 1? 252 294.1
6?*4? 150*100 192 192 394 223 1? 498 581.2
6?*5? 150*125 203 203 423 250 1? 498 581.2
6?*6? 150*150 203 203 423 250 1? 498 581.2
8?*5? 200*125 203 203.2 455 250 1? 585 682.7
8?*6? 200*150 228.6 228.6 487 312 1? 585 682.7
8?*8? 200*200 228.6 228.6 539 315 1 1/4? 910 1062
10?*8? 250*200 279.4 228.6 542 355 1 1/4? 910 1062
10?*10? 250*250 279.4 279.4 551 355 1 1/4? 910 1062
12?*8? 300*200 280 279.4 678 454 1 1/4? 1480 1727.2
12?*10? 300*250 304.8 280 678 458 1 1/4? 1480 1727.2
12?*12? 300*300 304.8 304.8 678 458 1 1/4? 1480 1727.2
14?*10? 350*250 318 328 678 460 1 1/4? 2150 2509.2
14?*12? 350*300 318 328 678 460 1 1/4? 2150 2509.2
14?*14? 350*350 318 328 678 460 1 1/4? 460 2509.2
16?*12? 400*300 334 364 745 522 1 1/4? 522 3617.7
16?*14? 400*350 334 364 745 522 1 1/4? 522 3617.7
16?*16? 400*400 334 364 745 522 1 1/4? 522 3617.7
18?*14? 450*350 370 389 785 562 1 1/4? 562 4726.4
18?*16? 450*400 370 389 785 562 1 1/4? 562 4726.4
18?*18? 450*450 370 389 785 562 1 1/4? 562 4726.4
20?*16? 500*400 406 428 849 612 1 1/4? 612 5718.3
20?*18? 500*450 406 428 849 612 1 1/4? 612 5718.3
20?*20? 500*500 406 428 849 612 1 1/4? 612 5718.3
