Aluminium Bronze Gate Valve

No attributes available

Aluminium Bronze Gate Valve

Connections: Flanged, Threaded, Socket welded, ButtWeld

Pressure rating: PN 1.0 to 25 Mpa, Class 150 to 2500

Size: DN 50 to 500mm, NPS 1/4? to 20?

Temperature: -198?c to +450?c

Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414, BS 5352, DIN 3352

Face to face (end to end): ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202

Flanged connection: 2? to 24? , ANSI B16.5, 26? to 36?,? MSS-SP-44 to API605

Test and inspection: API 598, API 6D, DIN 3230

Butt welded end: ANSI B16.5

Parts and Materials:

Body: Aluminium Bronze ASTM B148 C95800 , Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy

20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M

Bonnet, Disc: Aluminium Bronze ASTM B148 C95800, Monel Alloy 400, Duplex Stainless Steel, Super Duplex

Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, ?C5, C12, LCB, CF3M,

Trim: Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy,

Alloy 20, Duplex Stainless Steel, Super Duplex Stainless Steel

Gland Packing: Graphite, PTFE

End Connections: Flanged, Socketweld, Buttweld

Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated

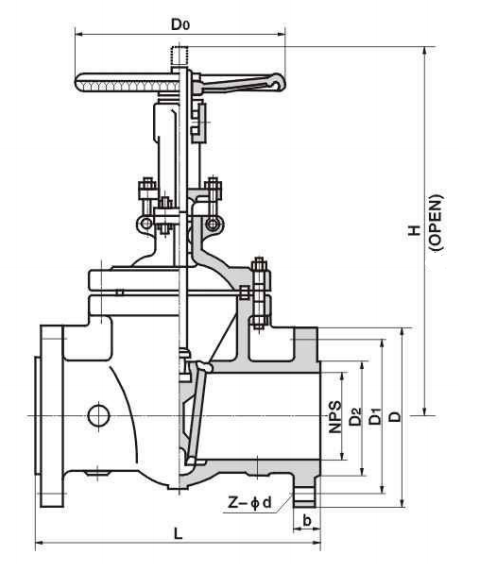

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm

Class150

DN L H(Open) D D1 D2 b Z-?d D0
50 178 409 152 120 92 19 4-19 200
80 203 570 190 152 127 23 4-19 250
100 229 590 229 190 157 23 8-19 250
150 267 630 279 241 216 25 8-22 300
200 292 960 343 298 270 28 8-22 350
250 330 1158 406 362 324 30 12-25 400
300 356 1378 483 432 381 31 12-25 450
350 381 1543 533 476 413 35 12-29 500
400 406 1738 597 539 470 36 16-29 600
450 432 1959 635 578 533 39 16-32 600
500 457 2214 698 635 584 42 20-32 680
600 508 2599 813 749 692 47 20-35 760
