Aluminium Bronze Globe Valve

Aluminium Bronze Globe Valve

Connections: Flanged, Threaded, Socket welded, ButtWeld

Pressure rating: PN 1.0 to 25 Mpa, Class 150 to 2500

Size: DN 15 to 200mm, NPS 1/4? to 20?

Temperature: -198?c to +450?c

Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414, BS 5352, DIN 3352

Face to face (end to end): ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202

Flanged connection: 2? to 24? , ANSI B16.5, 26? to 36?,? MSS-SP-44 to API605

Test and inspection: API 598, API 6D, DIN 3230

Butt welded end: ANSI B16.5

Parts and Materials:

Body: Aluminium Bronze ASTM B148 C95800 , Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy

20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M

Bonnet, Disc: Aluminium Bronze ASTM B148 C95800, Monel Alloy 400, Duplex Stainless Steel, Super Duplex

Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, ?C5, C12, LCB, CF3M,

Trim: Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy,

Alloy 20, Duplex Stainless Steel, Super Duplex Stainless Steel

Gland Packing: Graphite, PTFE

End Connections: Flanged, Socketweld, Buttweld

Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated

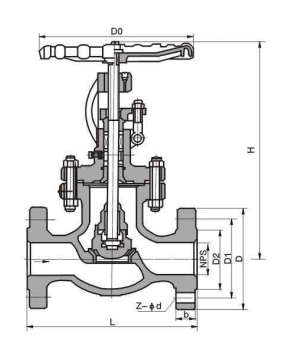

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm

Class150? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??
