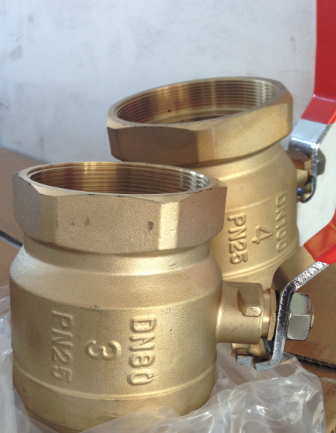

1 Piece Threaded Ball Valve
1 Piece Threaded Ball Valve provides reliable shutoff and flow control with threaded ends, suitable for industrial, water, and utility pipeline systems.
Starting at$99.99
Contact UsProduct Overview
Pressure Rating
Working Pressure: ANSI Class 125-150 (PN10-PN16): Class 125 (200 PSI), Class 150 (300 PSI). Threaded brass construction for general service
Temperature Range
Service Temperature: -7°C to 121°C (20°F to 250°F) with PTFE seats. Brass construction suitable for water, oil, and gas applications
Material Construction
Body: Brass ASTM B16 with 2-piece threaded design
Ball: Brass with chrome coating for wear resistance
Stem: Brass or stainless steel with anti-blowout design
Seats: PTFE virgin grade
Handle: Brass lever with comfortable grip
Seals: Viton O-rings
End Connections: NPT threaded with anti-seize compound
Connection Type
Flanged (ANSI B16.5), Threaded (NPT/BSP)
Looking for more details?
View complete technical specifications in the Specifications tab, check out Features and Applications, or download product documentation from the Downloads tab.
