Brass Flanged Globe Valve
Body: Brass
Disc: Brass
Bonnet: Brass
Stem: Brass
Packing Nut: Brass
Stem Bush: Brass
Packing: Teflon, PTFE
Handwheel: Cast Iron
Nominal Size: DN15 to DN150
Nominal Pressure: PN16, Class150
End Connection: Flanged
Suitable Medium: Water, Oil, Gas

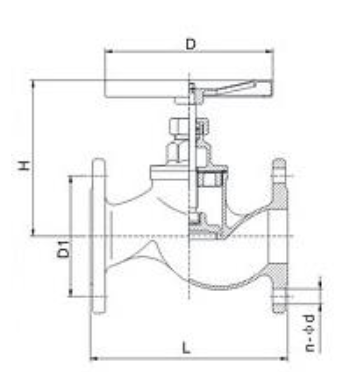

Dimension? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Unit: mm
| DN | D | H | L |
| 15 | 55 | 79.5 | 80 |
| 20 | 60 | 88.6 | 90 |
| 25 | 72 | 94 | 100 |
| 32 | 80 | 114 | 110 |
| 40 | 100 | 132 | 120 |
| 50 | 140 | 183 | 135 |
