Cryogenic Long Stem Globe Valve
| Body Material | |
| Connection Type | |
| Class | |
| Size |

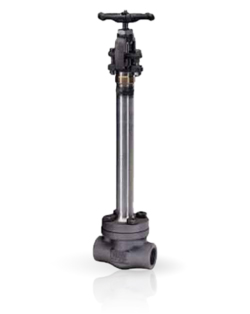

Cryogenic long Stem Globe Valve
Body: F304, F316, SS304, SS316
Bonnet: Stainless Steel
Stem: Stainless Steel
Packing: PTFE
Disc face ring: PTFE
Nominal Diameter: DN10 to DN100
Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class300
Applicable medium: O2, N2, Ar, LNG
Applicable temperature: -80℃ to +80℃

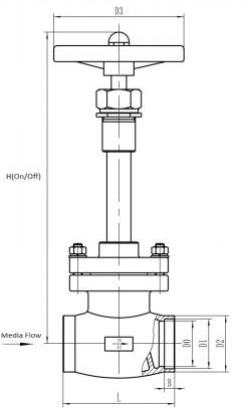

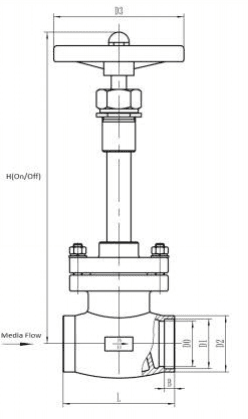

Dimension
PN16 Unit: mm
| DN | H(on) | H(off) | L | D | D1 | D2 | b |
| 10 | 255 | 245 | 61 | 65 | 10 | 14.5 | 6 |
| 15 | 255 | 246 | 61 | 65 | 15 | 18.5 | 6 |
| 20 | 302 | 289 | 81 | 80 | 22 | 24.5 | 6 |
| 25 | 302 | 289 | 81 | 80 | 26 | 28.5/32.5 | 6 |
| 32 | 355 | 340 | 102 | 100 | 32 | 38.5 | 9 |
| 40 | 356 | 340 | 102 | 100 | 42 | 45.5 | 9 |
| 50 | 391 | 370 | 127 | 137 | 54 | 58 | 10 |
| 65 | 435 | 413 | 150 | 205 | 68 | 71 | 10 |
| 80 | 486 | 516 | 182 | 202 | 84 | 89 | 17 |
| 100 | 564 | 531 | 200 | 213 | 104 | 109 | 15 |
