Cryogenic Steam Jacket Globe Valve
| Body Material | |
| Class | |
| Connection Type | |
| Size |

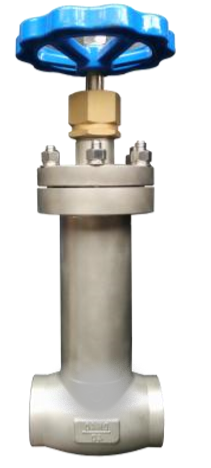

Cryogenic Steam Jacket Globe Valve
Body: SS304, SS316, F304, F316
Bonnet: Stainless Steel
Stem: Stainless Steel
Stuffing: PTFE
Seal ring: PTFE
Nominal Diameter: DN10 to DN50
Nominal Pressure: PN1.6 to 6.4MPa, Class150, Class300
Suitable Media: LNG,LO2,LN2,LAr,etc
Suitable Temperature: -196℃ to +80℃
Connection Type: Socket welding
Heat Insulating Type: PU insulation

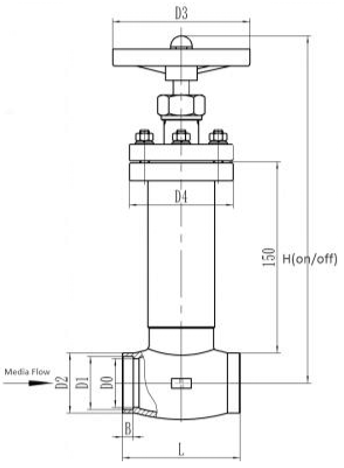

Dimension
PN16 Unit: mm
| DN | H(on) | H(off) | L | L1 | L2 | D | D1 | D2 | b |
| 10 | 255 | 245 | 61 | 157 | 145 | 65 | 10 | 14.5 | 6 |
