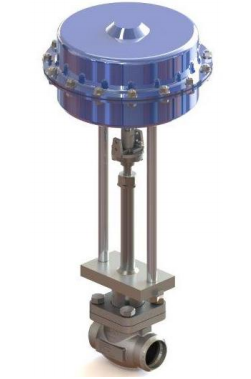

Cryogenic Pneumatic Actuated Globe Valve

A cryogenic pneumatic actuated globe valve combines the regulating characteristics of a globe valve with pneumatic actuation for remote or automated operation. This arrangement can be useful where process flow needs to be adjusted repeatedly or where the valve must respond to an automated control system. For cryogenic service, the valve body, stem, packing, seat and bonnet arrangement must all be selected for the specified minimum temperature. Pneumatic actuation itself does not make a conventional globe valve suitable for cryogenic service; the complete valve-and-actuator assembly must be engineered for the operating conditions.

Key Features

• Globe configuration for flow regulation and shut-off

• Pneumatic actuator for automated operation

• Extended bonnet arrangement where required for cryogenic service

• Positioner and associated accessories available according to control requirements

• Cryogenic-compatible sealing and trim materials

• Flanged or butt-weld connections depending on design

• Fail-open, fail-closed or other actuator action according to the process

Technical Specifications

Materials & Components

African Valve can offer customized configurations based on project-specific requirements, including valve size, pressure class, operating temperature, body and trim materials, end connection, corrosion conditions, actuator sizing, leakage class and control accessories.

Applications in Algeria

Cryogenic pneumatic actuated globe valves are suited to LNG processing and transfer, industrial gas production, air-separation units, cryogenic storage and petrochemical facilities where automated modulation or isolation of low-temperature media is required.

Standards

Depending on the valve construction and project requirements, applicable standards may include BS 6364, ISO 28921-1 and ASME B16.34, with relevant globe/control-valve standards applied according to the specific design.
