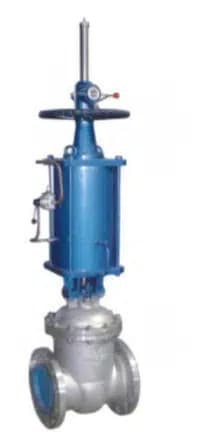

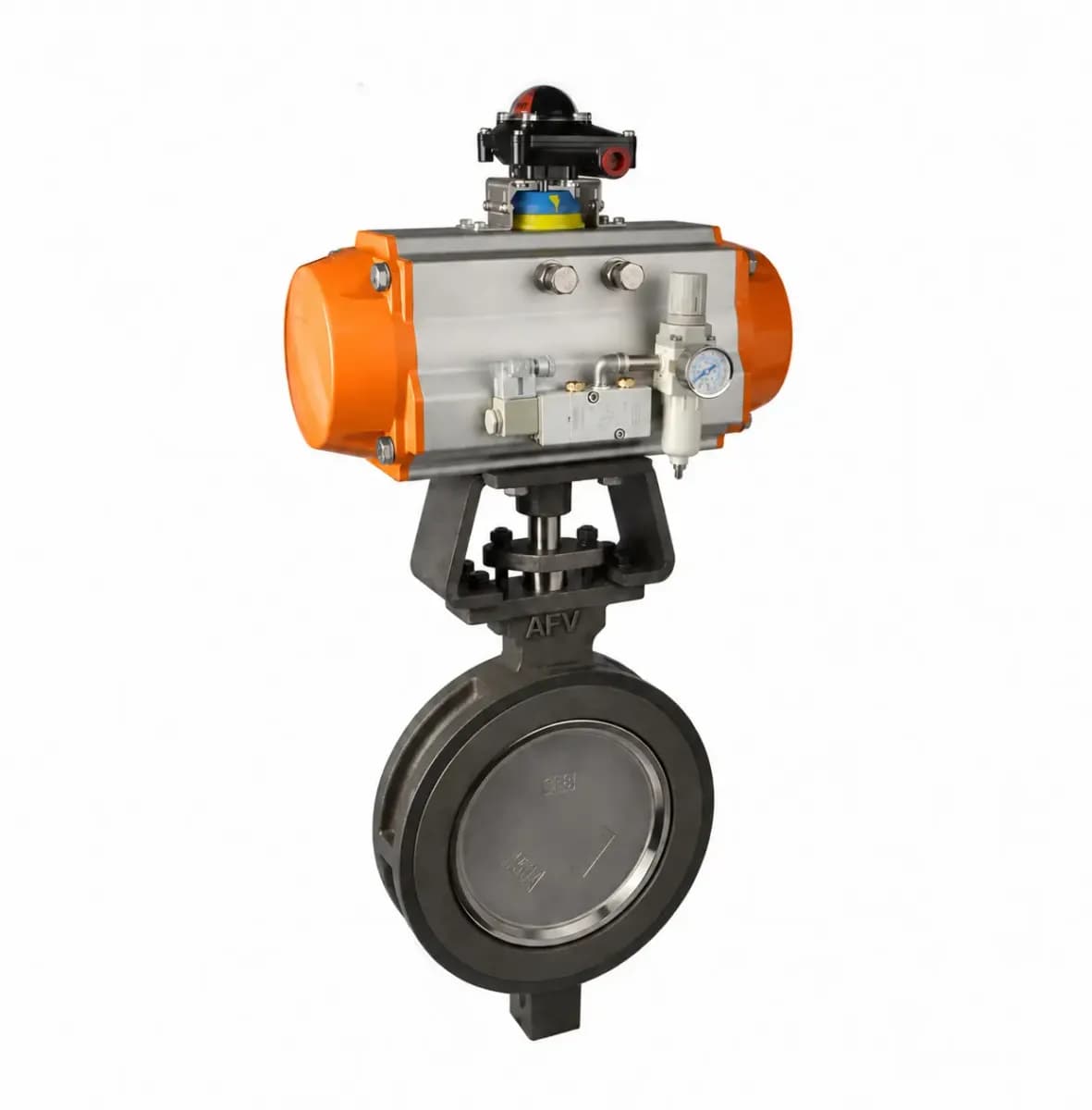

Pneumatic Actuated Valve

Pneumatic actuated valves use compressed air to operate valves for automated opening, closing or positioning. As a Pneumatic Actuated Valve supplier In Africa, African Valve manufactures and supplies pneumatic valve configurations for automated isolation, flow regulation and process applications. Pneumatic actuation is available with diaphragm or piston actuators and can be configured for mining, mineral processing, oil & gas, petrochemical, power generation, water and wastewater treatment, chemical processing and industrial applications.

Pneumatic Actuated Valve Features

• Automatic Operation - Uses compressed air for automated valve movement.
• Fast Actuation - Provides responsive operation for automated systems.
• On-Off Operation - Enables automatic valve opening and closing.
• Modulating Operation - Supports continuous positioning where required.
• Spring-Return Options - Provides a defined fail position when configured with a return spring.
• Double-Acting Options - Uses pneumatic pressure for both directions of movement.
• Positioner Compatibility - Supports accurate positioning in modulating applications.
• Application-Specific Selection - Valve, actuator and accessories are selected according to service conditions.

Technical Specifications

Materials & Components

• Body - ASTM A216 WCB / ASTM A352 LCB / ASTM A217 WC6 or WC9 / ASTM A351 CF8M / Duplex Stainless Steel
• Plug / Disc / Ball - SS316 / SS410 / F6a / Hardened Alloy / Stellite Overlay
• Seat - SS316 / 13Cr / Stellite Overlay / PTFE, depending on design
• Cage - SS304 / SS316 / Hardened Alloy, where applicable
• Actuator - Pneumatic Diaphragm / Pneumatic Piston

Applications in Africa

• Mining & Mineral Processing - Automated isolation and flow regulation
• Oil & Gas - Pneumatic operation of process and utility valves
• Petrochemical - Automated process-fluid handling
• Power Generation - Automated water and utility-system operation
• Water & Wastewater Treatment - Automated treatment and distribution systems
• Chemical Processing - Automated handling of compatible process fluids
• Industrial Manufacturing - Process and utility-line automation

Standards

The IEC 60534 series applies to industrial-process control valves, including applicable requirements for pneumatic actuator performance and testing. Other standards may apply according to the specific valve type, pressure-containing construction, end connection and project requirements. Testing may include hydrostatic shell testing, seat leakage testing, actuator calibration and functional stroke testing according to the applicable specification.
