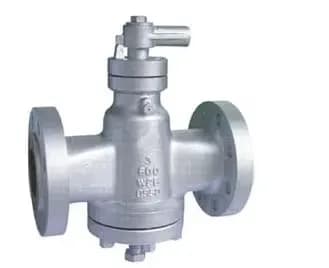

Pressure Balanced Plug Valve
High Performance • Durable • Leak Proof
API 6DASME B16.34ISO 17292CE Certified
Pressure balanced plug valve designed for smooth quarter-turn operation and reliable isolation in demanding pipelines.
Technical Specifications
Key Features & Applications
High-pressure pipelines can place considerable force on a conventional plug valve, making it harder to operate and increasing wear between the plug and body. A Pressure Balanced Plug Valve addresses this problem through internal pressure-balancing passages that help equalize the forces acting on the plug. This reduces the risk of the plug becoming tightly wedged against its seating surface during operation.
Technical Specifications
Parameter | Specification |
|---|---|
Valve Type | Pressure Balanced Plug Valve |
Design | Inverted Pressure Balanced / Lubricated |
Size Range | DN15 – DN600 |
Pressure Rating | ASME Class 150, 300, 600, 900, 1500 |
Body Material | ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8 / CF8M |
Plug Material | Carbon Steel, Stainless Steel, Alloy Steel |
Stem Material | ASTM A182 F6a, F304, F316 |
Seating | Metal Seated / Lubricated |
Sealing System | Pressure-Balanced Sealant Injection |
Port Design | Regular Port / Venturi Port / Short Pattern |
End Connection | Flanged / Butt Weld |
Operation | Lever / Gear / Pneumatic / Electric |
Design Standards | API 599 / API 6D |
Pressure-Temperature Rating | ASME B16.34 |
Face-to-Face Standard | ASME B16.10 |
Flange Standard | ASME B16.5 |
Testing Standards | API 598 / API 6D |
Related Products
Non-Lubricated Sleeved Plug Valve
ANSI Class 150 | ANSI Class 300 | ANSI Class 600, supporting a wide range of pressures
Request Quote
Orbit Plug Valve
ANSI Class 150 | ANSI Class 300 | ANSI Class 600, supporting low, medium, and high-pressure process applications
Request Quote
Twin Seal Plug Valve
Pressure Class Options: • Class 150: 275 PSI maximum working pressure • Class 300: 720 PSI maximum working pressure • Class 600: 1440 PSI maximum working pressure Design verification per ASME B16.34 Hydrostatic testing per API 598 standards Pressure-temperature ratings available
Request Quote
Lubricated Plug Valve
Pressure classes: 150# (285 PSI), 300# (740 PSI). Lubricated seal provides bi-directional sealing capability.
Request Quote

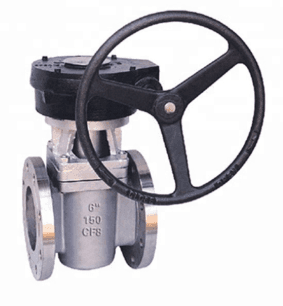

Jacketed Plug Valve
