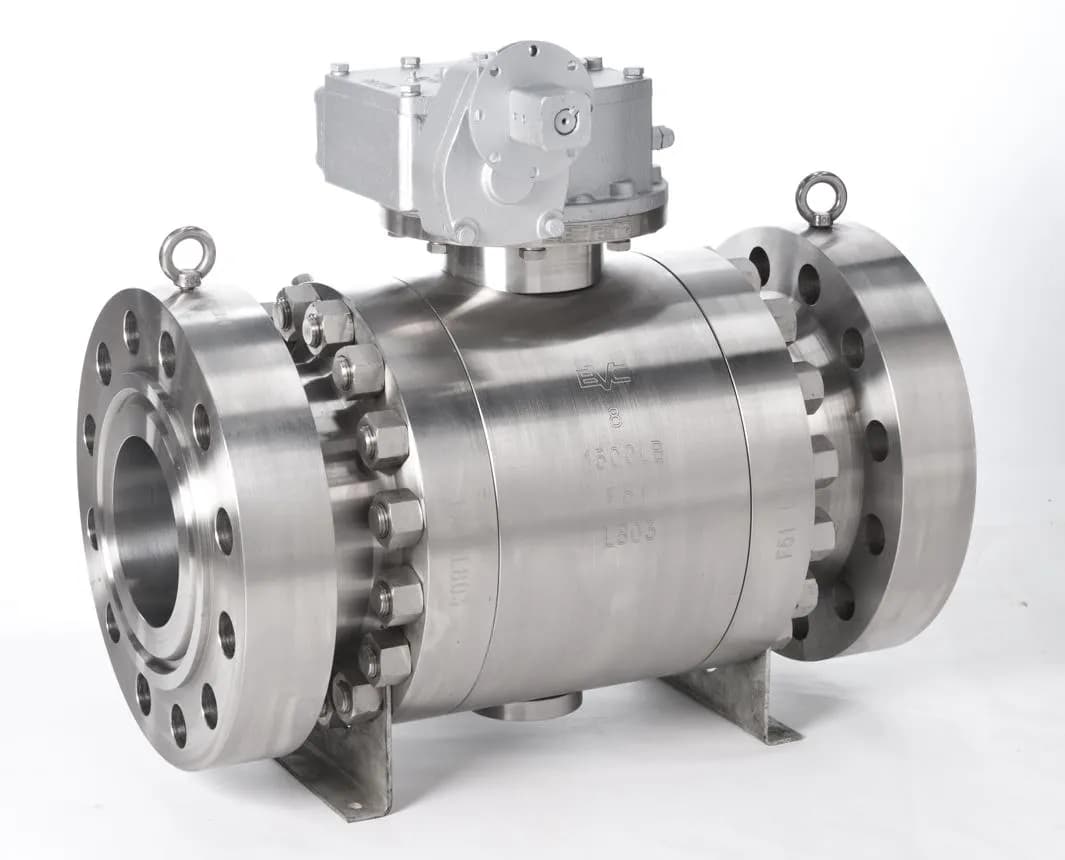

Hastelloy C276/B3 Ball Valve
High Performance • Durable • Leak Proof
Hastelloy C276/B3 Ball Valve Manufacturer in Africa for corrosion-resistant flow control.
Technical Specifications
Key Features & Applications
Large-bore and high-pressure chemical systems can produce seat loads that make a floating ball valve difficult to operate. Supporting the ball on trunnions reduces this movement and allows the seats to move toward the ball. African Valve is a leading Hastelloy C276/B3 Ball Valve Manufacturer in Africa, supplying South Africa, Nigeria, Egypt, Angola and major African and export projects.
Technical Specifications
Size Range: DN50 to DN900
Pressure Ratings: ASME Class 150 to Class 1500
Design Standards: API 6D, API 608 and ASME B16.34
Testing Standard: API 6D or API 598
End Connections: Flanged RF, RTJ or butt weld
Operation: Gearbox, pneumatic, hydraulic or electric actuator
Body Materials: Hastelloy C276 or Hastelloy B3
Ball Design: Trunnion mounted/ Floating Ball Valve
Body Construction: Side entry, top entry, two-piece or three-piece
Seat Options: Soft seated or metal seated
Pressure and Cavity Control
When the valve is closed, pressure may become trapped in the body cavity. A pressure-relief arrangement allows excess cavity pressure to discharge to the upstream or downstream side according to the seat design.Double-block-and-bleed capability should be confirmed from the exact valve configuration. It should not be assumed solely from the trunnion-mounted construction.
Applications
C276 trunnion valves are used in corrosive chemical transfer, offshore injection, chlorine-processing systems and pollution-control pipelines. B3 versions suit selected reducing-acid service where the process chemistry is controlled.
Manufacturing and Inspection
Large nickel-alloy valves require controlled casting or forging, machining and welding. PMI, NDT, dimensional inspection, shell testing, seat testing, cavity-relief checks and actuator functional testing may be included.
Large-Bore Project Supply
African Valve supplies C276 and B3 trunnion-mounted ball valves for chemical and pipeline projects across Africa. RFQ data should include chemistry, size, pressure, temperature, isolation arrangement, seat design, end connections, actuation and inspection scope.
