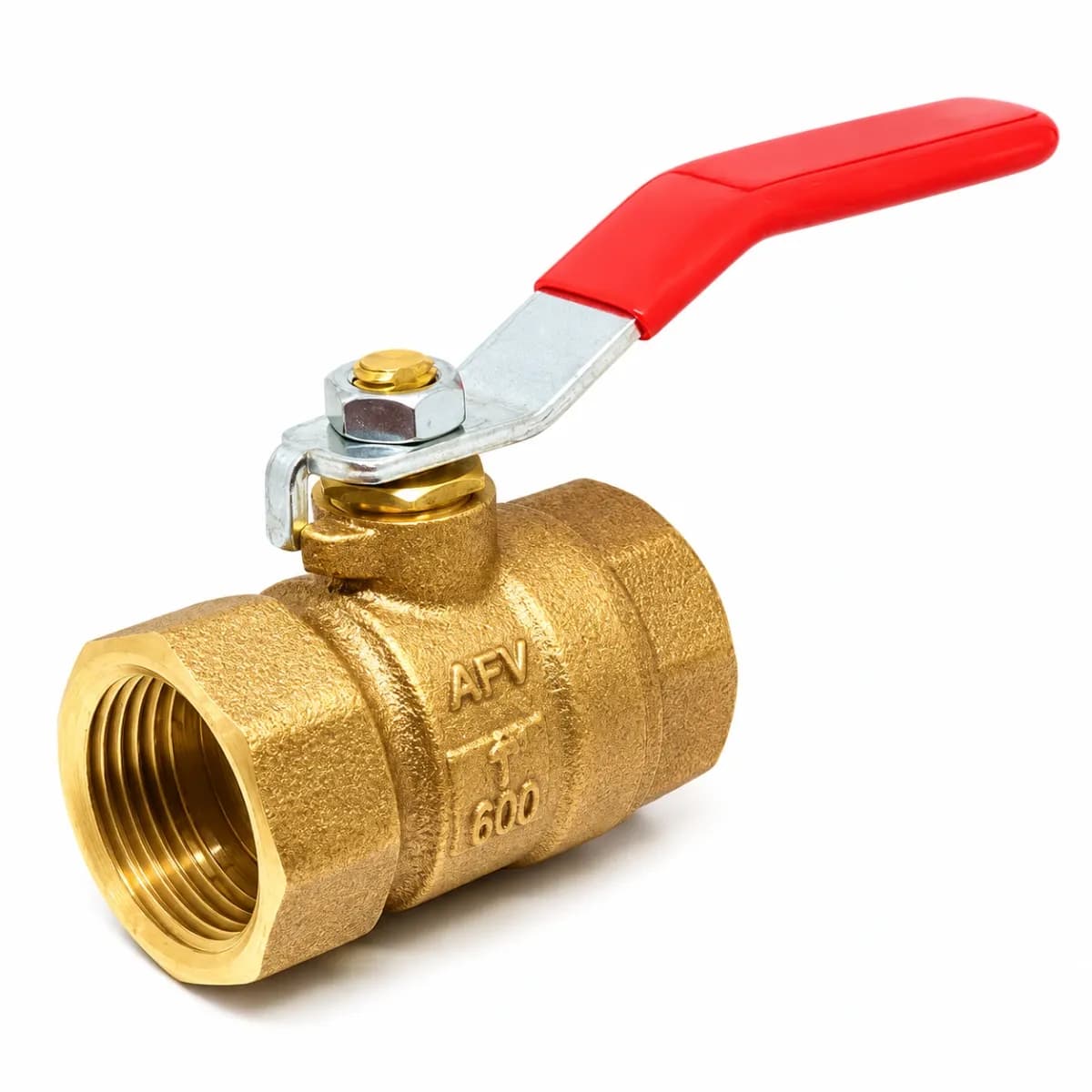

Bronze Ball Valve
High Performance • Durable • Leak Proof
Bronze ball valve for dependable quarter-turn isolation in water, marine and compatible industrial piping systems.
Technical Specifications
Key Features & Applications
A Bronze Ball Valve provides quick and reliable shutoff in piping systems where corrosion resistance and ease of operation are important. Its quarter-turn mechanism uses a spherical ball with a central bore that aligns with the pipeline when open and blocks the flow when closed. This simple operating principle makes the valve suitable for systems requiring frequent isolation.
Bronze is commonly selected for water handling, marine services and compatible industrial fluids because of its corrosion resistance.
Technical Specifications
Parameter | Specification |
|---|---|
Valve Type | Bronze Ball Valve |
Design | Floating Ball / Two-Piece or Three-Piece |
Size Range | DN15 - DN100 |
Pressure Rating | PN16, PN25 / Class 150 |
Body Material | ASTM B62 C83600 / ASTM B61 C92200 Bronze |
Ball Material | Chrome-Plated Brass / Stainless Steel SS316 |
Bore | Full Bore / Reduced Bore |
End Connection | BSP Threaded / NPT Threaded / Flanged |
Operation | Lever Operated / Pneumatic / Electric |
Design Standard | MSS SP-110 / ASME B16.34 |
