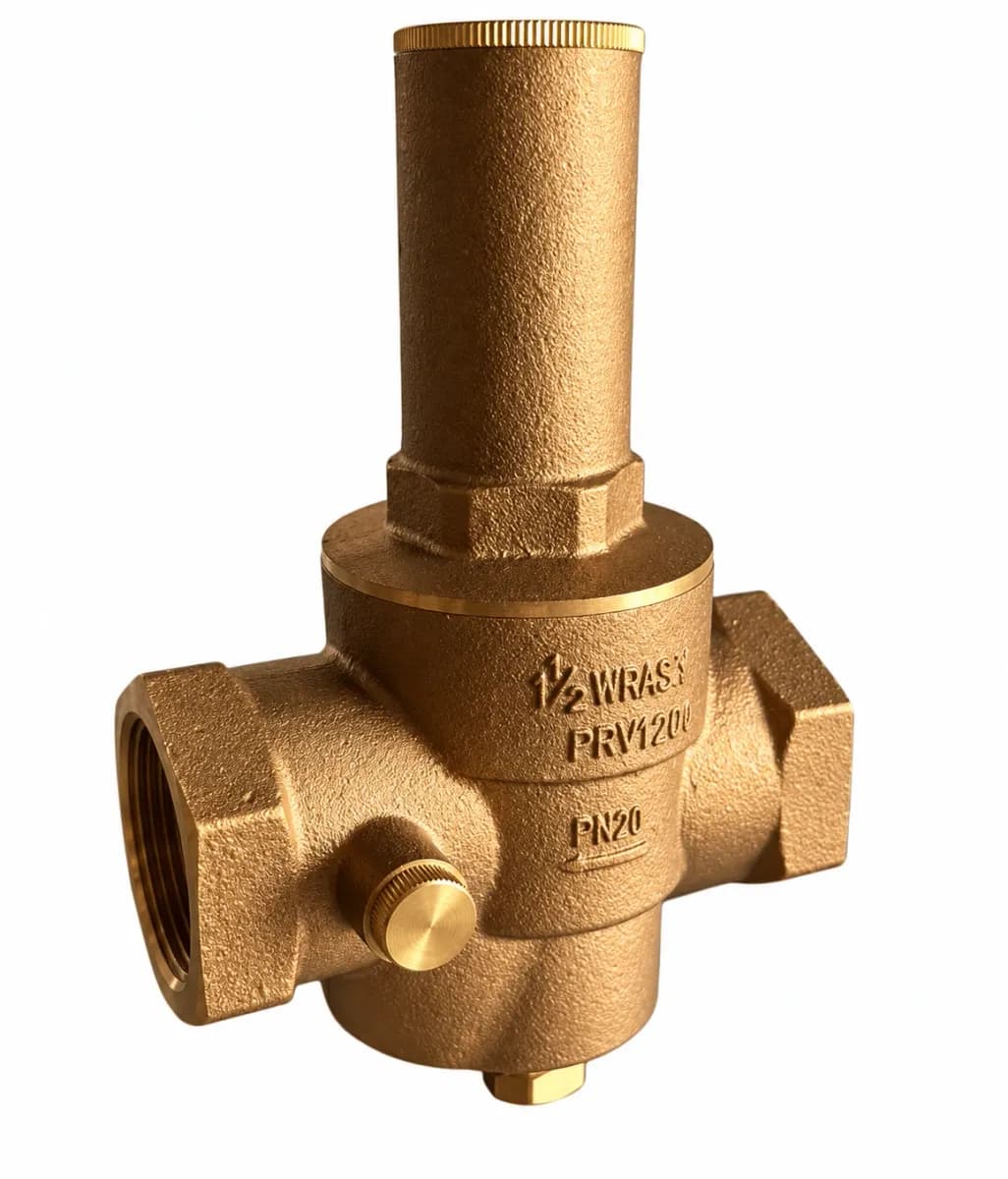

Brass Pressure Reducing Valve
High Performance • Durable • Leak Proof
Brass pressure reducing valve designed to maintain stable downstream pressure in water supply and utility pipelines.
Technical Specifications
Key Features & Applications
A Brass Pressure Reducing Valve helps maintain a controlled downstream pressure when the incoming supply pressure is higher than the system requires. It works automatically, using a spring-loaded diaphragm or piston mechanism to adjust the valve opening as downstream pressure changes. This helps protect pipework, fittings and connected equipment from excessive pressure.
Brass construction offers good corrosion resistance in compatible water services, while its compact design makes installation straightforward in smaller piping systems. Depending on the model, the outlet pressure can be adjusted to suit the operating requirements, without the need for an external power supply.
Technical Specifications
Parameter | Specification |
|---|---|
Valve Type | Brass Pressure Reducing Valve |
Design | Direct Acting / Spring Loaded |
Size Range | DN15 – DN100 |
Pressure Rating | PN16, PN25 |
Body Material | Brass CW617N / CW602N |
End Connection | BSP / NPT Threaded |
Maximum Inlet Pressure | Up to 16 / 25 bar, depending on model |
Adjustable Outlet Pressure | Typically 1–6 bar |
Operation | Automatic / Self-Actuated |
Connection Standards | ISO 228-1 / ASME B1.20.1 |
Testing | Pressure and Seat Leakage Testing |
