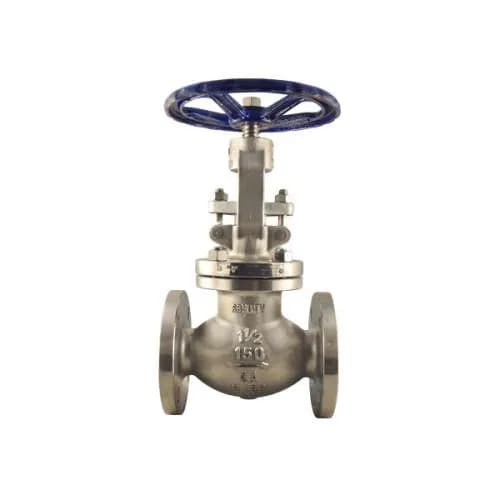

F53/F55 Super Duplex Globe Valve Manufacturer in Africa

High-chloride process lines need controlled flow adjustment without losing resistance to pitting, crevice corrosion or stress-corrosion cracking. Super duplex grades F53 and F55 combine high strength with a stronger corrosion margin than standard duplex F51. African Valve is a leading F53/F55 Super Duplex Globe Valve Manufacturer in Africa, supplying South Africa, Nigeria, Egypt, Angola and other African and export markets.

Why F53 and F55 Are Used

ASTM A182 F53 is equivalent to UNS S32750, whereas ASTM A182 F55 is equivalent to UNS S32760. Both of these are super duplex stainless steels that are forged and used for valves and pressure components in severe chloride environments. The combination of the two makes them strong and corrosion-resistant. F55 can be chosen when the process chemistry or the project requires it. Neither of these materials can be taken to be universally applicable to all seawater applications.

Globe Valve Flow Control

A globe valve regulates flow by moving a disc or plug toward and away from a fixed seat. This creates a controlled restriction and allows better throttling than a gate valve. The internal flow path changes direction through the body, so pressure drop is higher and must be considered during sizing.Conventional discs suit isolation and moderate regulation. Plug or parabolic profiles give a more gradual change in flow area. Preferred flow direction depends on disc design, pressure differential and closing-force requirements.

Body, Trim and Seat Selection

The body and bonnet may be forged from ASTM A182 F53 or F55. The stem, disc, seat and backseat should use the same grade or another compatible alloy. A high-alloy body can fail if lower-alloy trim remains exposed. ASTM A182 covers forged valves, flanges, fittings and related pressure-containing parts.Metal seating is considered for higher temperature, erosion or repeated cycling. Hard-facing may be applied to reduce galling and seat wear. Flexible graphite packing supports elevated-temperature duty, while low-emission packing may be specified where fugitive-emission control is required.

Technical Specifications

Size Range: DN15 to DN100 for standard forged construction; larger sizes on request

Pressure Ratings: ASME Class 150 to Class 2500

Design Standards: API 602 and ASME B16.34

Testing Standard: API 598

End Connections: Flanged RF/RTJ, socket weld, threaded or butt weld

Operation: Handwheel, gearbox, pneumatic actuator or electric actuator

Body Material: ASTM A182 F53 / UNS S32750 or ASTM A182 F55 / UNS S32760

Disc Options: Conventional, plug or parabolic disc

Bonnet Design: Bolted, welded or pressure seal

Stem Design: Rising stem, outside screw and yoke

API 602 applies to compact forged gate, globe and check valves, while ASME B16.34 addresses pressure-temperature ratings, materials, examination, testing and marking for applicable designs.

Pressure Drop and Control Performance

The valve should be sized from the required flow coefficient, normal operating position and allowable pressure loss. An oversized globe valve may remain close to the seat, causing unstable control and trim wear. A valve that is too small can create excessive velocity and erosion.Actuator selection should consider maximum differential pressure, stem force and packing friction. Manual operation may suit smaller sizes, while pneumatic or electric actuation can be used for frequent or remote control.

Industrial Applications

F53 and F55 globe valves are used in seawater injection, desalination, offshore utilities, produced-water treatment, brine circulation, chemical dosing and oil and gas lines. They are useful where chloride resistance and controlled adjustment are both required.

Inspection and Quality Control

Material Test Certificates establish heat traceability for the body and trim. PMI may be carried out on the body, bonnet, stem and disc, while ferrite measurement, heat-treatment review and NDT may be specified. Hydrostatic shell and seat tests are followed by full-stroke checks.

Supply Across Africa

African Valve supplies F53 and F55 super duplex globe valves for marine, offshore, water and process projects across Africa. The enquiry should state grade, fluid chemistry, chlorides, pressure, temperature, flow range, pressure drop, disc type, ends and actuation.
