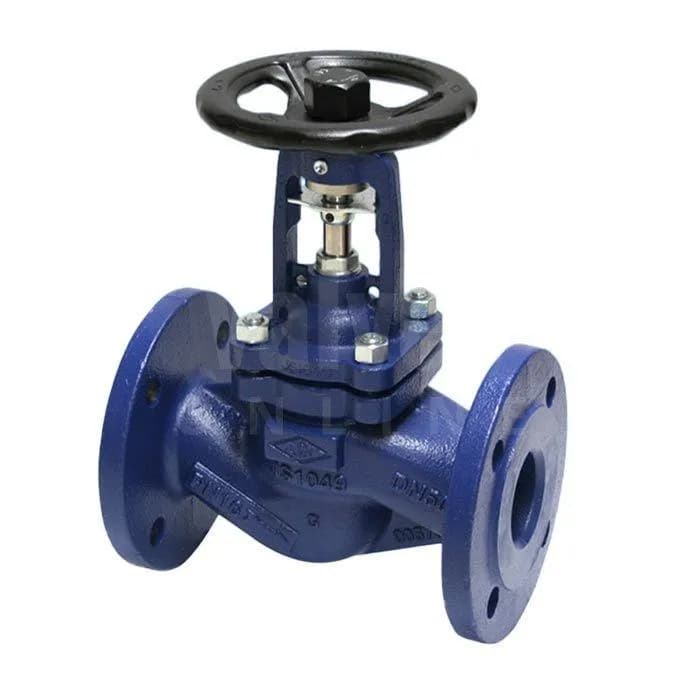

F44 Globe Valve

When a process requires controlled adjustment of flow in a corrosion-resistant valve construction, F44 Globe Valve Manufacturers in South Africa provide globe valve configurations using F44 stainless steel. The linear movement of the disc allows the flow opening to be varied progressively for throttling and regulation.

F44 Globe Valve Components

• Body: Contains the flow passage and pressure boundary.

• Disc: Moves toward the seat to regulate flow.

• Stem: Transfers linear operating force to the disc.

• Seat: Provides the disc sealing surface.

• Bonnet: Encloses the stem and internal components.

• Packing: Limits external stem leakage.

• Gasket: Maintains pressure-tight bonnet sealing.

Why F44 Is Used for Corrosive Flow-Control Duty

ASTM A182 F44 is identical to UNS S31254, which is super-austenitic stainless steel that contains around 6% molybdenum content together with high levels of chromium, nickel, and nitrogen. This chemical makeup makes the F44 grade highly resistant to pitting corrosion, crevice corrosion, and chloride-induced stress-corrosion cracking relative to normal austenitic stainless steels. Applications of F44 include seawater, brine, bleaching agents, and acidic/chloride-containing media. However, the compatibility of the material depends on the concentration, temperature, aeration, flow velocity, crevice environment, and chemistry of the process fluid.

Flow Regulation Through Globe Valve Geometry

The valve controls flow by moving a disc or plug toward and away from a stationary seat. This creates a defined restriction that allows better regulation than a gate valve. The change in flow direction through the body produces a higher pressure drop, so the valve should be sized using the required flow rate and allowable system loss.

Disc options may include conventional, plug or parabolic profiles. A plug or contoured disc supports more progressive flow adjustment, while a conventional disc is used mainly for isolation and moderate throttling. The manufacturer determines the preferred flow direction according to disc design, differential pressure and closing-force requirements.

Forged Body and Trim Arrangement

The body and bonnet are manufactured from ASTM A182 F44 forgings. Stem, disc, seat and backseat materials may use F44 or another compatible high-alloy grade. The complete wetted trim should be reviewed because lower-alloy internal parts can become the first corrosion point even when the body is correctly selected.

Seats may be renewable, integral or hard-faced. Hard-facing can reduce galling, erosion and seating wear under frequent operation or high differential pressure. Flexible graphite packing and gaskets may be selected for elevated-temperature duties, while low-emission packing can be included when fugitive-emission control is specified.

Technical Specifications

Size Range: DN15 to DN100 for standard forged construction; larger sizes on request
Pressure Ratings: Class 150 to Class 2500
Body Material: ASTM A182 F44 / UNS S31254
Design Standards: API 602 and ASME B16.34
Testing Standard: API 598
End Connections: Flanged RF/RTJ, socket weld, threaded or butt weld
Bonnet Design: Bolted, welded or pressure seal
Disc Options: Conventional, plug or parabolic disc
Stem Design: Rising stem, outside screw and yoke
Operation: Handwheel, gearbox, pneumatic or electric actuator
Service Function: Isolation and controlled throttling

API 602 covers compact steel gate, globe and check valves through DN100 for petroleum and natural-gas service. ASME B16.34 may govern pressure-temperature ratings, materials, examination, testing and marking for the valve configuration.

Process Applications

F44 globe valves are used in desalination dosing systems, seawater and brine circuits, chemical injection lines, pulp and paper bleaching units, offshore utilities, flue-gas treatment plants and corrosive process services. They are particularly relevant where both flow adjustment and resistance to localised chloride corrosion are required.

Manufacturing and Quality Verification

F44 forgings are checked against the specified heat treatment, chemistry and mechanical requirements. Material Test Certificates establish traceability, while Positive Material Identification can verify the alloy at the body, bonnet and selected trim components. Dimensional examination, hardness checks and NDT are carried out according to the project specification.Each completed valve undergoes shell and seat testing followed by full-stroke operation. Disc alignment, stem travel, packing compression, seating contact, marking and end-connection dimensions are confirmed before dispatch.

Flow-Control Selection for African Installations

African Valve supplies F44 globe valves for marine, desalination, chemical and chloride-bearing process systems across Africa. The purchase specification should state fluid composition, pressure, temperature, flow range, allowable pressure drop, leakage requirement, end connection, actuation and inspection requirements.
