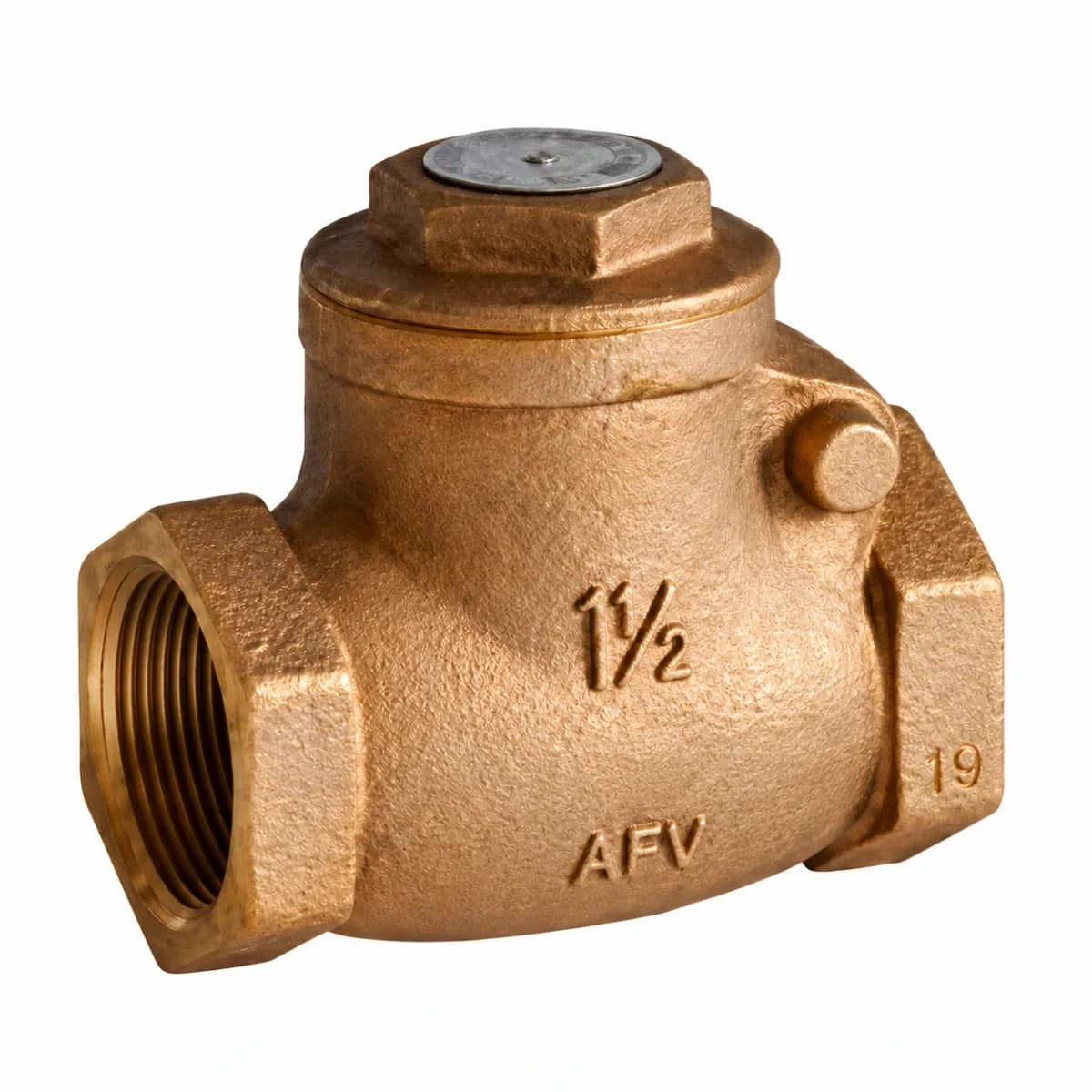

Bronze Check Valve
High Performance • Durable • Leak Proof
Bronze check valve designed to prevent reverse flow in marine, water supply and industrial piping systems.
Technical Specifications
Key Features & Applications
Reverse flow can damage pumps, disrupt pressure conditions and affect the performance of connected equipment. A Bronze Check Valve helps prevent this by allowing fluid to move in one direction and closing automatically when the flow stops or reverses.
In a swing-type design, the internal disc opens under forward flow pressure and returns to its seat when the pressure differential reverses. This allows the valve to operate without a handwheel, actuator or external power source. Bronze construction also offers corrosion resistance in compatible water and marine applications.
Technical Specifications
Parameter | Specification |
|---|---|
Valve Type | Bronze Check Valve |
Design | Swing Type / Hinged Disc |
Size Range | DN15 – DN100 |
Pressure Rating | PN10, PN16, PN25 / Class 125, 150 |
Body Material | ASTM B62 C83600 / ASTM B61 C92200 Bronze |
Disc Material | Bronze / Stainless Steel SS316 |
End Connection | BSP Threaded / NPT Threaded / Flanged |
Operation | Automatic / Flow Actuated |
Flow Direction | Unidirectional |
Installation | Horizontal / Vertical Upward Flow |
