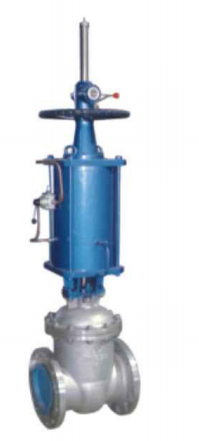

Pneumatic Actuated Gate Valve
High Performance • Durable • Leak Proof
API 6DASME B16.34ISO 17292CE Certified
Pneumatic actuated gate valve with linear motion for reliable automated isolation in high-pressure process systems.
Technical Specifications
Key Features & Applications
African Valve supplies Pneumatic Actuated Gate Valve Suppliers in Nigeria for automated isolation in oil & gas, power, chemical, mining, water and industrial piping systems. A pneumatic actuator uses compressed air to operate the gate valve, allowing remote opening and closing without manual handwheel operation. Double-acting and spring-return actuator arrangements can be selected according to the required control and fail position.
Engineering Design & Operation
The gate moves linearly between the seats to isolate the pipeline. Gate valves are primarily intended for isolation in fully open or fully closed positions rather than continuous throttling. Pneumatic actuation can provide remote and rapid operation.
Double-acting actuators use air for both opening and closing. Spring-return designs use compressed air for one direction and springs for the other.
Technical Specifications
| Parameter | Typical Specification |
|---|---|
| Valve Type | Pneumatic Actuated Gate Valve |
| Size | 1/2" to 12" (DN15-DN300) |
| Pressure Class | Class 150–2500, depending on design |
| End Connection | Flanged / Butt-Weld |
| Gate | Wedge |
| Actuator | Pneumatic Linear |
| Actuator Type | Double-Acting / Spring-Return |
| Air Supply | Typically around 4–8 bar |
| Control | Solenoid Valve |
| Testing | API 598, where specified |
| Valve Design | API 600 or API 6D, where applicable |
API 600 covers steel gate valves with flanged or butt-welding ends and bolted bonnets, while API 6D covers pipeline valves including gate valves. The applicable standard should therefore be selected according to the actual valve design and service.
Materials
Body: ASTM A216 WCB, WCC, LCB, CF8M, WC6 or WC9
Gate: Carbon Steel, Alloy Steel or Stainless Steel
Stem: SS410, 17-4PH or SS316
Seat: 13% Cr, Stainless Steel or Stellite-faced
Packing: Flexible Graphite or PTFE
Gasket: Spiral-Wound or Graphite
Bolting: ASTM A193 B7, B8 or B8M
Related Products
Pneumatic Trunnion Ball Valve
Standard Class Range: Class 150–900, PN16–PN160 Low Pressure: Class 150–300 (PN16–PN40) Medium Pressure: Class 400–600 (PN63–PN100) High Pressure: Class 900 (PN160)
Request Quote
Pneumatic Floating Ball Valve
Standard Class Range: Class 150–600, PN16–PN100 Low Pressure: Class 150–300 (PN16–PN40) Medium Pressure: Class 400–600 (PN63–PN100)
Request Quote
Pneumatic Actuated Butterfly Valve
ANSI Class 150–300 (PN10–PN40) supporting varied pressure and service conditions
Request Quote

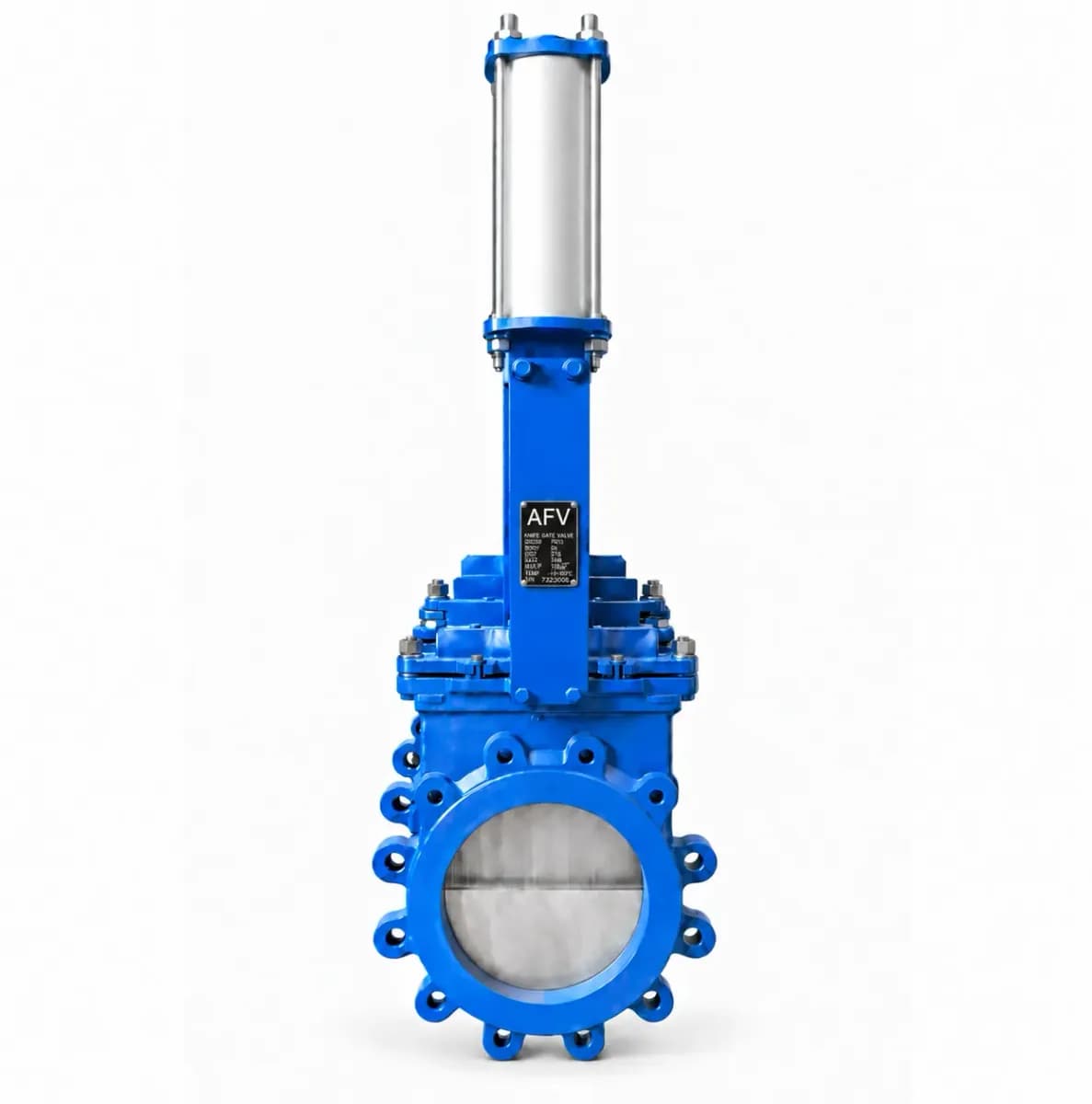

Pneumatic Knife Gate Valve
