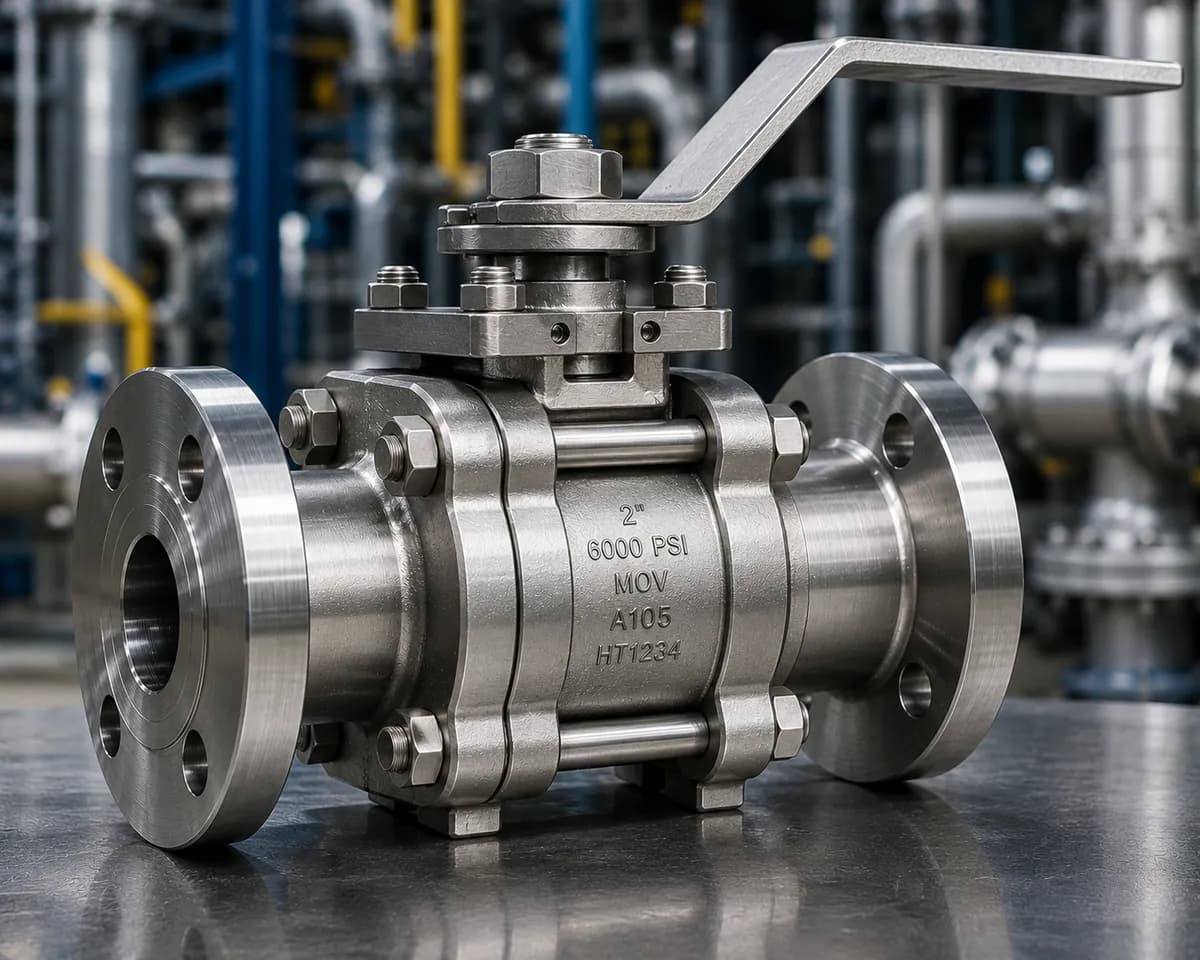

High Pressure Ball Valve Manufacturer in Africa

Product Introduction

Engineered specifically for harsh services that require high-pressure and good sealing, the High Pressure Ball Valve is designed to ensure positive shut-off even during tough operating conditions. With its sturdy body, machined ball, and strong seal, this valve allows handling of high-pressure liquids, gases, steam, hydrocarbons, and process fluids. These valves are extensively used in critical industrial applications as these valves offer reliable performance. In Africa, African Valve is a Topmost High Pressure Ball Valve Manufacturer, producing and supplying these valves in various material grades, pressure ratings, end connections, and actuation methods for projects in Nigeria, Egypt, South Africa, Kenya, Ghana, and other African nations as well as overseas export locations.

Why Is a High Pressure Ball Valve Used?

High Pressure Ball Valves are employed in processes where the system experiences higher pressure levels that normal ball valves cannot cope with. The design of the high pressure ball valves entails thick bodies, a sturdier stem, precise machining of sealing surfaces, and robust seats in order to be able to withstand the higher pressures internally and ensure reliable closure of the system. They find application in hydraulic processes, high pressure gas lines, injection processes, and chemical processing.

Design & Working Principle

he control valve works using the 90-degree turn of the machined ball to allow or block the flow. The ball aligned with the pipeline results into a full-port flow that is completely unobstructed by the valve, while a turn at 90-degrees of the ball provides tight seal from the flow. High pressure valves usually have special designs like trunnion mounted or floating ball design, blow-out proof stems, fire safe seals, and anti-static devices. The soft seated and metal seated designs cater for severe processes.

Materials & Construction

The valve is manufactured using:

• Forged Carbon Steel – ASTM A105

• Carbon Steel – ASTM A216 WCB

• Stainless Steel – ASTM A182 F304 / F316

• Duplex Stainless Steel – ASTM A182 F51

• Super Duplex Stainless Steel – ASTM A182 F53

• Alloy Steel

Construction features include:

• Heavy-duty pressure-retaining body

• Blow-out Proof Stem

• Fire-safe Construction

• Anti-static Device

• Soft Seat or Metal Seat options

• Floating or Trunnion Ball design

• Full Bore and Reduced Bore configurations

• Flanged, Socket Weld, Butt Weld, and Threaded end connections

Technical Specifications

• Size Range: DN8 to DN300 (¼" to 12")

• Pressure Ratings: Class 800 to Class 4500

• Design Standards: API 6D, API 608, ASME B16.34

• Testing Standard: API 598, API 6D

• End Connections: Socket Weld, Butt Weld, Threaded, Flanged

• Operation: Lever, Gear, Pneumatic, Electric, Hydraulic

Industrial Applications

High Pressure Ball Valves are widely used in:

• Oil & Gas Production

• Petrochemical Plants

• Hydraulic Systems

• High-Pressure Gas Distribution

• Chemical Processing

• Power Generation

• Offshore Platforms

• Process Industries

Product Features

• Designed for high-pressure service

• Heavy-duty body construction for enhanced strength

• Bubble-tight shut-off under demanding operating conditions

• Available with floating or trunnion-mounted ball designs

• Compatible with manual and automated operation

• Manufactured according to international engineering standards

Manufacturing & Inspection

African Valve manufactures High Pressure Ball Valves in accordance with international engineering standards and customer project specifications. Every valve undergoes dimensional verification, hydrostatic shell testing, high-pressure seat leakage testing, operational testing, and final inspection before dispatch. Material Test Certificates (MTC), PMI reports, NDT reports, and quality documentation are available to support project compliance and engineering approval.

Supply Across Africa

African Valve supplies High Pressure Ball Valves to oil & gas, petrochemical, hydraulic, chemical processing, offshore, and power generation projects throughout Nigeria, Egypt, South Africa, Kenya, Ghana, and other African countries, as well as international export markets. Valves are available in different material grades, pressure classes, end connections, sealing arrangements, and actuation systems to meet demanding high-pressure industrial applications.
