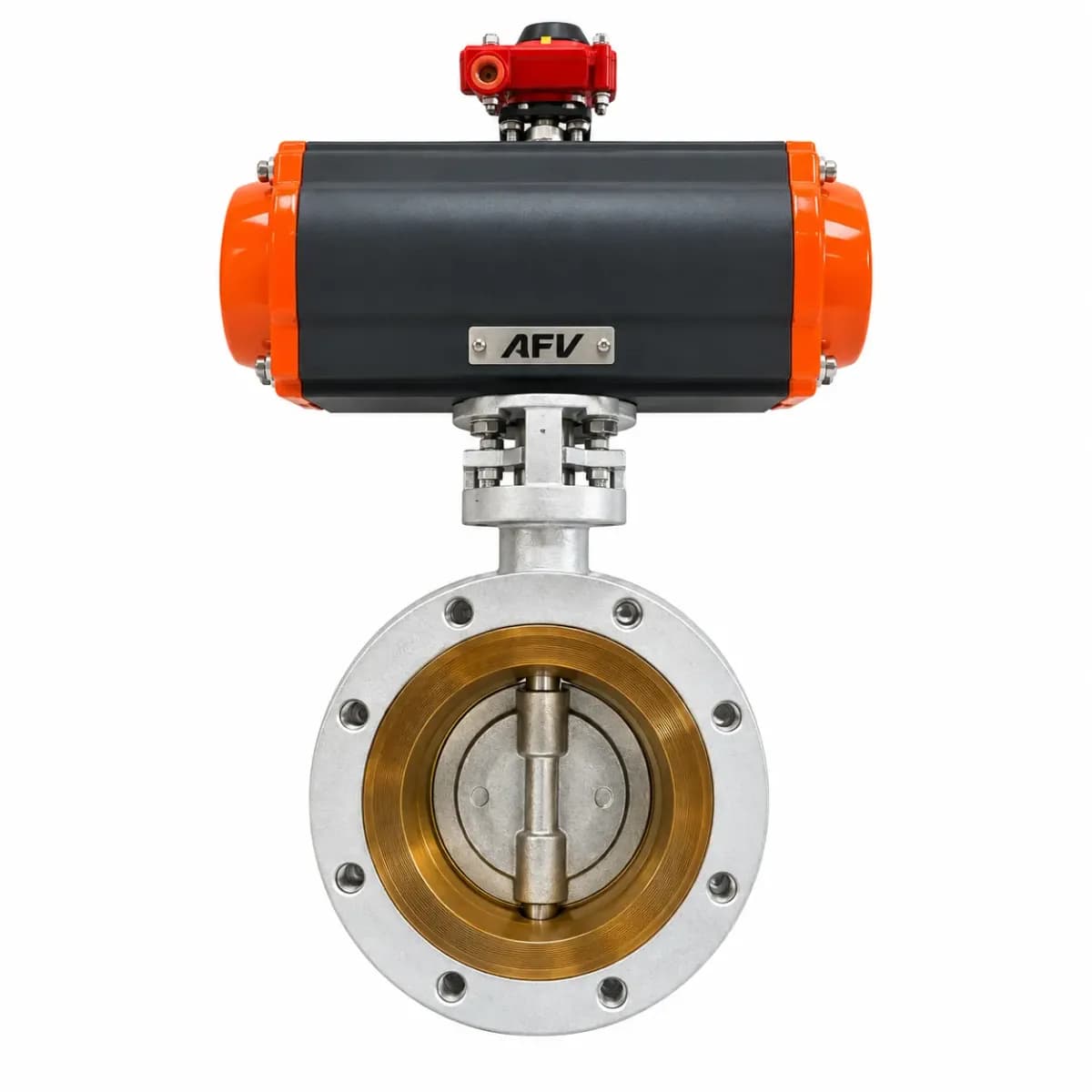

Pneumatic Triple Offset Butterfly Valve
High Performance • Durable • Leak Proof
API 6DASME B16.34ISO 17292CE Certified
Compact Pneumatic Triple Offset Butterfly Valve for space-saving automated installations between standard flanges.
Technical Specifications
Key Features & Applications
A Pneumatic Triple Offset Butterfly Valve is designed for pipelines where temperature, pressure and sealing performance place greater demands on the valve. Its three-offset disc arrangement allows the sealing surfaces to separate as the valve opens, reducing rubbing and helping protect the seat from premature wear.
Unlike conventional resilient-seated butterfly valves, this design generally uses a metal or laminated sealing arrangement. It is often selected for refinery operations, steam lines, power generation plants and other industrial processes where a suitable metal-seated valve is required.
African Valve manufactures pneumatic triple offset butterfly valves with body materials and pressure classes selected to suit the service conditions. The pneumatic actuator provides remote quarter-turn operation and can be configured with spring return, position indication and other accessories for integration into automated systems.
Technical Specifications
Parameter | Specification |
|---|---|
Valve Type | Pneumatic Triple Offset Butterfly Valve |
Design | Triple Offset / Triple Eccentric |
Size Range | DN80 – DN1600 |
Pressure Rating | Class 150, 300, 600 |
Body Material | ASTM A216 WCB, ASTM A351 CF8, CF8M, ASTM A217 WC6, WC9 |
Disc Material | Stainless Steel, Alloy Steel, Duplex Stainless Steel |
Stem Material | SS316, 17-4PH, Alloy Steel |
Seat Material | Metal-to-Metal, Laminated Metal Seat |
End Connection | Lug, Wafer, Double Flanged |
Actuator | Double Acting, Spring Return |
Air Supply | Typically 4–7 bar |
Design Standards | API 609, ASME B16.34 |
Testing Standards | API 598, ISO 5208 |
