Duplex Basket Strainer

Body Material
Class
Connection Type
Size

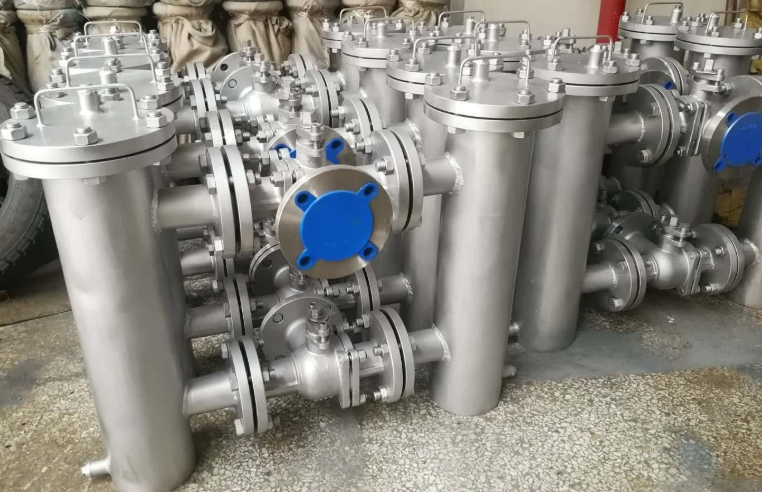

Duplex Basket Strainer

Body: Carbon Steel, CF8, CF8M, CF3M, Cast Iron, SS304, SS316

Screen: SS304, SS304L, SS316, SS316L

Gasket: Graphite+Stainless Steel

Cover: A105, F304, F304L, F316, F316L

Cover Ball: A193 B7, A193 B8, A193 B8M

Cover Nut: 2H

Drain Plug: A193 B7, A193 B8, A193 B8M

Nominal Diameter: DN25 to DN200

Nominal Pressure: Class125 to Class300, PN10 to PN420

Design and Manufacture Standard: ASME B16.34

Flanged End Dimension: ANSI B16.1, BS EN 1092-2, DIN2501

Screwed End Dimension: ANSI B1.20.1, BS21

Face to Face Dimension: ANSI B16.10, DIN 3202, EN558-1, EN12982

Inspection and Test: API598

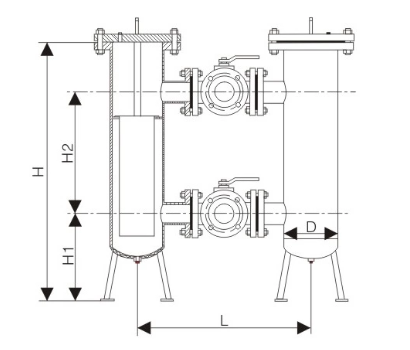

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Unit:mm

DN L D H H1 H2
25 360 76 520 240 220
32 400 76 550 240 250
40 480 108 700 300 300
50 500 108 720 300 320
65 590 133 838 358 350
80 620 159 995 395 450
100 720 219 1075 435 460
125 860 273 1260 520 520
150 940 273 1355 535 570
200 1110 325 1585 605 680
