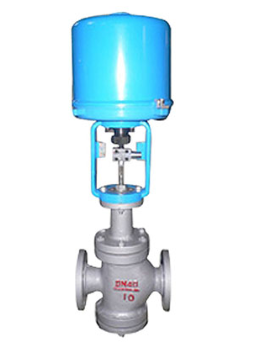

Electric Double Seat Control Valve
Body: WCB, SS304, SS316, SS304L, SS316L
Bonnet: WCB, SS304, SS316, SS304L, SS316L
Plug: Stainless Steel
Seat: Stainless Steel
Gasket: PTFE, Graphite
Stem: Stainless Steel
Nominal Diameter: DN25 to DN200
Nominal Pressure: PN16 to PN64, Class150 to Class2500
End Connection: Flanged, Buttweld, Threaded or Welded

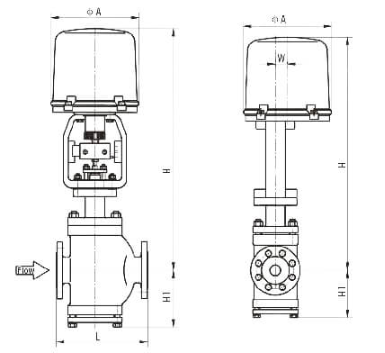

Dimension
PN16Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Unit: mm
| DN | L | H | H1 | H2 | A |
| 25 | 185 | 117 | 165 | 373 | 225 |
| 32 | 200 | 120 | 185 | 495 | 225 |
| 40 | 220 | 139 | 185 | 495 | 225 |
| 50 | 250 | 144 | 205 | 495 | 225 |
| 65 | 275 | 188 | 245 | 700 | 257 |
| 80 | 300 | 208 | 255 | 700 | 257 |
| 100 | 350 | 220 | 270 | 700 | 257 |
| 125 | 410 | 268 | 335 | 725 | 310 |
| 150 | 450 | 278 | 365 | 725 | 310 |
| 200 | 550 | 320 | 430 | 725 | 310 |
