Electric O-type Shut off Control Valve
Body: Carbon Steel , Stainless Steel
Bonnet: Carbon Steel, Stainless Steel
Seat: Stainless Steel
Plug: Stainless Steel
Stem: Stainless Steel
Packing: PTFE, Graphite
Nominal Diameter: DN15 to DN200
Nominal Pressure: PN16 to PN64, Class150 to Class2500
End Connection: Flanged, Buttweld, Socketweld

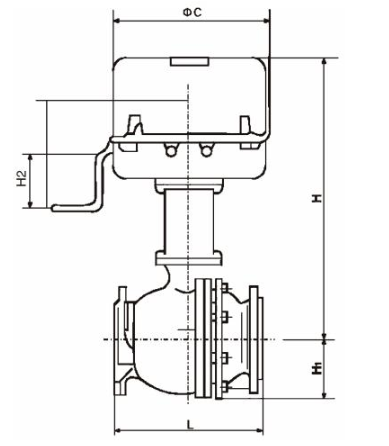

Dimension
PN16Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Unit: mm
| DN | L | H | H1 | H2 | C |
| 25 | 140 | 330 | 55 | 160 | 225 |
| 40 | 165 | 350 | 65 | 160 | 225 |
| 50 | 203 | 360 | 75 | 160 | 225 |
| 65 | 222 | 435 | 90 | 160 | 257 |
| 80 | 241 | 445 | 95 | 160 | 335 |
| 100 | 305 | 480 | 115 | 160 | 335 |
| 125 | 356 | 480 | 127 | 160 | 335 |
| 150 | 394 | 595 | 140 | 160 | 335 |
| 200 | 457 | 615 | 172.5 | 160 | 335 |
