Pneumatic Actuated Wafer Butterfly Valve

High Performance • Durable • Leak Proof

$780.00

SKU: PAWBV-UG-068

In Stock

API 6DASME B16.34ISO 17292CE Certified

Compact Pneumatic Actuated Wafer Butterfly Valve for space-saving automated installations between standard flanges.

Pneumatic Actuated Wafer Butterfly Valve Manufacturer in Africa

Product Introduction

Valves for automated pipelines must be light in weight to offer efficient control of fluid flows without taking up too much installation space. The Pneumatic Actuated Wafer Butterfly Valve is a combination of the wafer butterfly valve and the pneumatic actuator to offer rapid quarter turn opening and closing action powered by compressed air. Its light-weighted body has been designed to sit snugly between pipeline flanges. African Valve is a prominent Pneumatic Actuated Wafer Butterfly Valve Manufacturer in Africa, offering Pneumatic Actuated Wafer Butterfly Valves in different material grades, pressure classes, seating material types, and actuator designs for projects in Nigeria, Egypt, South Africa, Kenya, Ghana, and other countries in Africa and international markets.

How Does a Wafer Butterfly Valve Support Automated Flow Control?

The butterfly valve consists of a wafer mounted between the two flanges of the pipeline. This valve is mounted with the help of flange bolts that pass through the valve body from both sides. On activation of the pneumatic actuator through the application of compressed air, the disk turns for an angle of 90° to either open, regulate or close the flow passage.

Valve Construction

The components of the valve include a wafer valve body, a precisely machined disc, stem, seat, which may either be soft or metal seat, bearings, an ISO 5211 mounting pad, and the pneumatic actuator. The pneumatic actuator may be double acting or spring return type and comes with optional accessories such as solenoids, air filters and position indicators..

Materials & Construction
The valve is manufactured using:
Ductile Iron – ASTM A536 Grade 65-45-12
Carbon Steel – ASTM A216 WCB
Stainless Steel – ASTM A351 CF8 / CF8M
Duplex Stainless Steel – ASTM A995 Grade 4A
Super Duplex Stainless Steel – ASTM A995 Grade 5A
Construction features include:
Wafer Body Design
Precision Machined Disc
Blow-out Proof Stem
EPDM, NBR, PTFE, or Metal Seat Options
ISO 5211 Mounting Pad
Double Acting or Spring Return Pneumatic Actuator
Solenoid Valve, Positioner, and Limit Switch Options

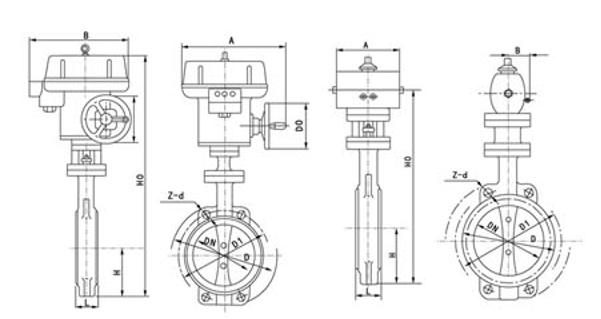

Technical Specifications
Size Range: DN40 to DN1200 (1½" to 48")
Pressure Ratings: PN10, PN16, PN25 | Class 150, 300
Design Standards: API 609, EN 593, ASME B16.34
Testing Standard: API 598
End Connections: Wafer
Operation: Pneumatic Actuated
Industrial Applications
Pneumatic Actuated Wafer Butterfly Valves are widely used in:
Water Treatment Plants
Oil and Gas Facilities
Chemical Processing Plants
Power Generation Stations
Marine Installations
Fire Protection Systems
Industrial Utility Pipelines
Process Automation Networks

Product Features
Compact wafer body minimizes installation space
Pneumatic actuator enables rapid automated operation
Quarter-turn disc provides quick flow isolation
Suitable for isolation and moderate throttling service
Available in double acting and spring return configurations
Manufactured according to internationally recognized engineering standards
Manufacturing & Inspection
Pneumatic Actuated Wafer Butterfly Valves are manufactured according to international engineering standards and customer project specifications. Every valve undergoes dimensional inspection, hydrostatic shell testing, seat leakage testing, pneumatic actuator functional testing, torque verification, operational testing, and final quality inspection before dispatch. Material Test Certificates (MTC), pressure test reports, actuator inspection records, and supporting documentation are available to satisfy engineering, procurement, and project compliance requirements.
Supply Across Africa
African Valve supplies Pneumatic Actuated Wafer Butterfly Valves to water infrastructure projects, power stations, refineries, chemical industries, marine installations, and industrial automation systems throughout Nigeria, Egypt, South Africa, Kenya, Ghana, and other African countries. Valves are available in multiple material grades, pressure classes, seating options, wafer body configurations, and pneumatic actuator arrangements to meet project-specific automated flow control requirements.
