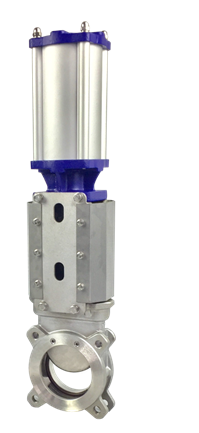

Pneumatic Bi Directional Knife Gate Valve

High Performance • Durable • Leak Proof

$1,480.00

SKU: PBDKGV-NA-070

In Stock

API 6DASME B16.34ISO 17292CE Certified

Pneumatic Bi Directional Knife Gate Valve with bi-directional sealing designed for slurry and solids applications.

Pneumatic Bi Directional Knife Gate Valve Manufacturer in Africa

Product Introduction

The isolation of flow in both directions of media such as slurry, pulp, wastewater, and others, with suspended solids calls for specific types of valves. A Pneumatic Bi Directional Knife Gate Valve consists of a bi-directional knife gate valve and a pneumatic actuator to enable the valve to operate automatically at high speed through the use of compressed air. Different from the traditional uni-directional design, the valve is designed to ensure reliable shut-off in any direction of flow. African Valve is a Best Pneumatic Bi Directional Knife Gate Valve Manufacturer in Africa, providing customers with Pneumatic Bi Directional Knife Gate Valves made in various grades of materials, pressure ratings, seats, and pneumatic actuators.

Why Is a Bi Directional Knife Gate Valve Used in Slurry Applications?

The two-way knife gate valve is constructed in such a way that it can seal the valve in either direction of the flow. Once compressed air is introduced into the pneumatic operator, the gate moves up or down depending on whether it is supposed to open or close the flow passage. During the movement of the sharp edge gate in the media, it cuts through suspended solids and slurry and then closes against the flexible seats on both ends of the valve.

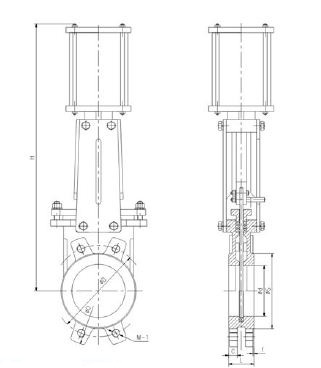

Valve Construction

The valve comprises of a robust body, knife gate made up of stainless steel, stem, bi-directional resilient seat assembly, gland packing, yoke, and a pneumatic actuator. The actuator may either be in a double-acting form or in a spring return form and comes with solenoid valves, air filter regulator, limit switches, and position sensors.

Materials & Construction
The valve is manufactured using:
Carbon Steel – ASTM A216 WCB
Stainless Steel – ASTM A351 CF8 / CF8M
Ductile Iron – ASTM A536 Grade 65-45-12
Duplex Stainless Steel – ASTM A995 Grade 4A
Super Duplex Stainless Steel – ASTM A995 Grade 5A
Construction features include:
Bi-Directional Sealing Design
Stainless Steel Knife Gate
Rising Stem Construction
Resilient Seat Arrangement
Double Acting or Spring Return Pneumatic Actuator
Solenoid Valve and Position Indicator Options
Wafer or Lug Body Design
Technical Specifications
Size Range: DN50 to DN1200 (2" to 48")
Pressure Ratings: PN10, PN16 | Class 150
Design Standards: MSS SP-81, ASME B16.34
Testing Standard: MSS SP-81, API 598
End Connections: Wafer, Lug
Operation: Pneumatic Actuated
Industrial Applications
Pneumatic Bi Directional Knife Gate Valves are widely used in:
Mining Operations
Pulp and Paper Plants
Wastewater Treatment Facilities
Chemical Processing Plants
Cement Industries
Power Generation Plants
Slurry Transportation Systems
Bulk Material Handling Facilities

Product Features
Provides shut-off in both flow directions
Pneumatic actuator enables rapid automated operation
Knife gate cuts through slurry and suspended solids
Suitable for abrasive and high-solid-content media
Available in double acting and spring return configurations
Manufactured according to internationally recognized engineering standards
Manufacturing & Inspection
Pneumatic Bi Directional Knife Gate Valves are manufactured according to international engineering standards and customer project specifications. Every valve undergoes dimensional inspection, hydrostatic shell testing, bi-directional seat leakage testing, pneumatic actuator functional testing, operational testing, and final quality inspection before dispatch. Material Test Certificates (MTC), pressure test reports, actuator inspection records, and supporting documentation are available to satisfy engineering, procurement, and project compliance requirements.
Supply Across Africa
African Valve supplies Pneumatic Bi Directional Knife Gate Valves to mining projects, wastewater treatment plants, pulp and paper industries, cement facilities, chemical processing units, and industrial automation systems throughout Nigeria, Egypt, South Africa, Kenya, Ghana, and other African countries. Valves are available in multiple material grades, pressure classes, body styles, seating options, and pneumatic actuator configurations to meet project-specific slurry isolation requirements.
