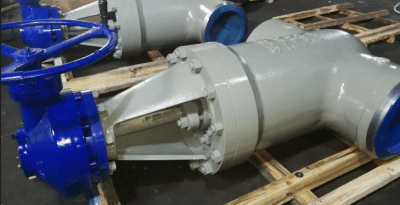

Pressure Seal Gate Valve

Body Material
Class
Size

Pressure Seal Gate Valve

Body: WCB, WC6, WCC, CF8, CF8M, A105, F22, F304, F316

Seal Facing: Stellite

Wedge: WCB, Stainless Steel

Stem: A182 F6, F304, F316

Back Seat Facing: Stellite

Gasket: Stainless Steel+Graphite

Bonnet: A105, F22, F304, F316

Bonnet Bolt: A193 B7

Bonnet Nut: A194 2H

Stem Packing: Graphite

Split Ring: A105, F22, F304, F316

Cover: A105, F22, F304, F316

Lantern Ring: A182 F6a, A276 410

Gland Flange: WCB, CF8

Gland Eyebolt: A193 B7, A183 B16, , A183 B8

Gland Nut: A194 2H

Yoke: WCB, CF8

Gear Box: Ductile iron

Nominal Diameter: DN50 to DN250

Nominal Pressure: Class1500 to Class2500

End Connection: Flanged, Buttweld, Threaded or Welded

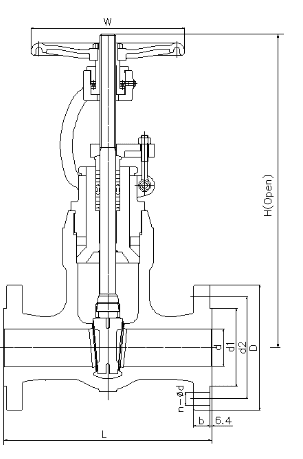

Dimension

Class1500                                                                    Unit: mm

DN d D D1 L H W
50 47 216 92 368 510 280
65 57 244 105 419 560 300
80 70 267 127 470 620 350
100 92 311 157 546 728 400
125 111 375 186 673 870 450
150 136 394 216 705 1000 500
200 178 483 270 831 1130 750
250 222 585 324 991 1360 900
