Triple Duty Valve

Home > Triple Duty Valve
Image 905
Image 906

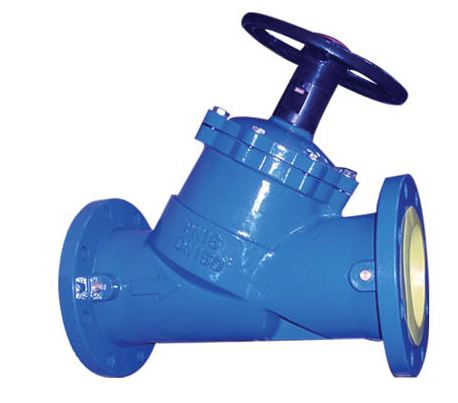

Triple Duty Valve

Body Material
Class
Size

Triple Duty Valve

S.No Parts Materials
1 Body Cast Iron
2 Cover Flange Cast Iron
3 Disc A536 Nickle Plated/Bronze B62
4 Stem SS410
5 Seat Guide A536 Nickle Plated Ductile Iron
6 Flange Gland Cast Iron
7 Packing Non-Asbestos
8 Spring 300 Series Stainless Steel
9 Packing Gland Cast Iron
10 Stem Guide Ductile Iron
11 Seat Ring A536 Nickle Plated Ductile Iron
12 Seat Seal EPDM O-Ring
13 Disc Seat EPDM O-Ring

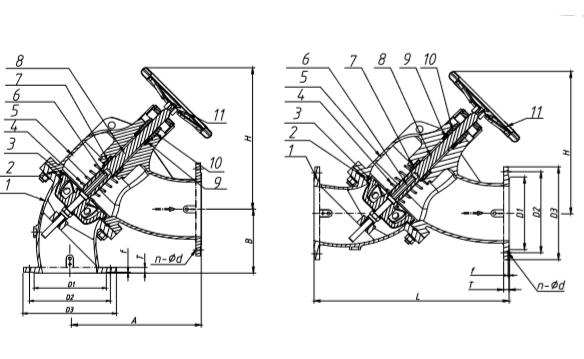

Dimensions

DN D1 D2 D3 n-?D L T f H(Min) H(max) A B
65 118 145 185 4-?19 304 19 3 243 272 187 117
80 132 160 200 8-?19 305 19 3 273 307 208 98
100 156 180 220 8-?19 355 19 3 273 307 244 111
125 184 210 250 8-?19 445 19 3 349 400 305 140
150 211 240 285 8-?23 525 19 3 362 419 359 168
200 266 295 310 12-?23 716 20 3 520 579 481 233
250 319 355 105 12-?28 762 22 3 585 653 516 248
300 370 410 460 12-?28 967 24.5 4 677 762 611 356
