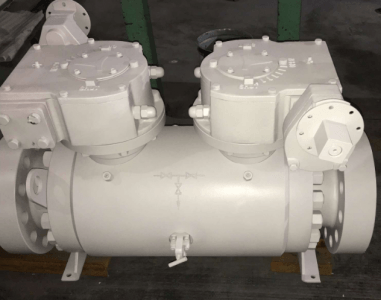

Double Block and Bleed Ball Valve

Double Block and Bleed Ball Valve

Body: A105, F304, F316, F316L, F51

Bonnet :A105

Ball:  A105, F304, F316, F316L, F51

Seat: F316L

Stem: F51

Seat Ring: F51

O Ring: VITON

Thrust Washer: PTFE

Bearing: PTFE+SS304

Gasket: SS304+Graphite

Body Cap: A105

Nominal Diameter: DN10 to DN400

Nominal Pressure: Class900 to Class2500

Temperature Range: -196°C to 650°C

Ball  Valve Design: API6D, BS5351, ASME B16.34

Face to face: ASME B16.10, AP6D

End Flange: ASME B16.5/ASME B16.47

Buttweld End: ASME B16.25

Fire Safety: API607, API6A

Inspection and test: API 598, API6D

Dimension

Class900                                                                Unit: mm
