Electric Cage Type Control Valve
| No attributes available |

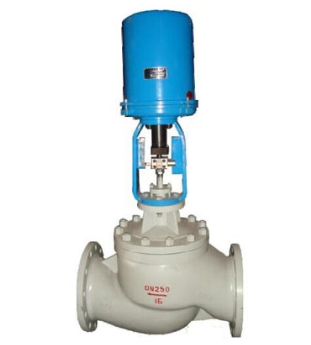

Electric Cage Type Control Valve
Body: Carbon Steel, Stainless Steel, Alloy Steel
Bonnet: Carbon Steel, Stainless Steel, Alloy Steel
Seat: Stainless Steel
Seal: PTFE
Plug: SS304, SS316
Stem: Stainless Steel
Nominal Diameter: DN25 to DN300
Nominal Pressure: PN16 to PN64, Class150 to Class2500
End Connections: Flanged, Buttweld, Socketweld

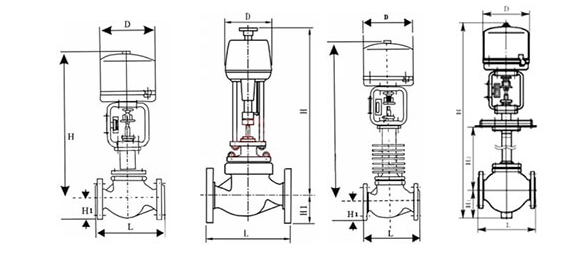

Dimensions
PN16 Unit: mm
| DN | L | H1 | H | D |
| 25 | 185 | 58 | 614 | 176 |
| 32 | 200 | 68 | 630 | 176 |
| 40 | 220 | 73 | 635 | 176 |
| 50 | 254 | 80 | 640 | 176 |
| 65 | 275 | 90 | 712 | 176 |
| 80 | 300 | 98 | 739 | 176 |
| 100 | 350 | 108 | 761 | 176 |
| 125 | 410 | 123 | 930 | 225 |
| 150 | 451 | 140 | 940 | 225 |
| 200 | 600 | 168 | 960 | 225 |
| 250 | 670 | 203 | 1165 | 225 |
| 300 | 735 | 230 | 1185 | 225 |
