Electric Single Seat Control Valve
| No attributes available |

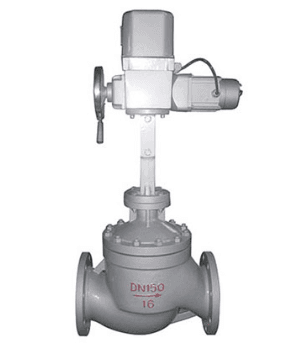

Electric Single Seat Control Valve
Body: WCB, SS304, SS316, CF8, CF8M
Bonnet: WCB, SS304, SS316, CF8, CF8M
Seat: Stainless Steel
Stem: Stainless Steel
Packing: Graphite, PTFE
Nominal Diameter: DN20 to DN200
Nominal Pressure: PN16 to PN64, Class150 to Class2500
End Connection: Flanged, Buttweld, Socketweld

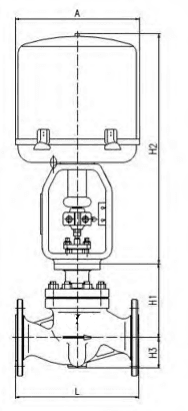

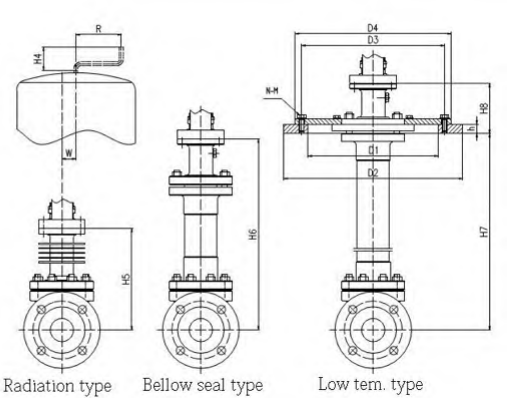

Dimension
PN16 Unit: mm
| DN | L | H1 | H2 | H3 | A |
| 20 | 194 | 128 | 373 | 65 | 225 |
| 25 | 197 | 137 | 373 | 70 | 225 |
| 32 | 200 | 148 | 495 | 70 | 255 |
| 40 | 235 | 152 | 495 | 85 | 255 |
| 50 | 267 | 159 | 495 | 90 | 255 |
| 65 | 292 | 218 | 535 | 102.5 | 255 |
| 80 | 317 | 230 | 535 | 107.5 | 255 |
| 100 | 368 | 238 | 535 | 125 | 255 |
| 125 | 420 | 264 | 725 | 125 | 310 |
| 150 | 473 | 331 | 725 | 172.5 | 310 |
| 200 | 600 | 346 | 725 | 180 | 310 |
