F51 Super Duplex Ball Valve
| Body Material | |
| Class | |
| Size |
F51 Super Duplex Ball Valve
Body: Super Duplex Stainless Steel, F51, F53, S32750, CE3MN
Ball: Super Duplex Stainless Steel, F51, F53, CE3MN
Seats: PTFE, HDPE, RPTFE, PPL
Seals: EPDM
Stem: Super duplex stainless steel, CE3MN
Design and Manufacture Standard: API 6D, ANSI B16.34, BS5351
Face to Face Dimensions: ANSI B16.10, ASME B16.10
Flange End Dimensions: ANSI B16.5
Butt Welded Dimensions: ANSI B16.25
Inspection and Test: API598, API 6D

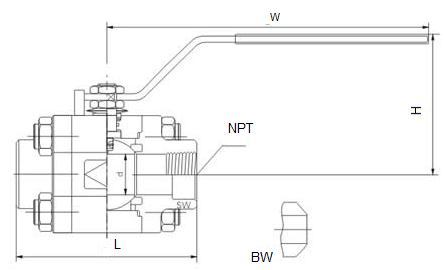

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Unit: mm
| DN | d | L | H | W |
| 8 | 6 | 92 | 55 | 160 |
| 10 | 9.5 | 92 | 55 | 160 |
| 15 | 13 | 92 | 60 | 160 |
| 20 | 17 | 110 | 65 | 160 |
| 25 | 23 | 127 | 65 | 160 |
| 32 | 30 | 140 | 85 | 170 |
| 40 | 38 | 152 | 105 | 230 |
| 50 | 48 | 152 | 110 | 230 |
