Forged Floating Ball Valve

Home > Ball Valve

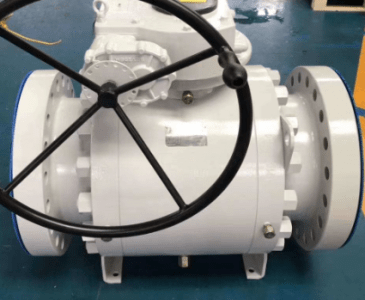

Image 1048
Image 1049

Forged Floating Ball Valve

No attributes available

Forged Floating Ball Valve

Bonnet: A105, F304, F316,

Seat: RPTFE

Body: A105, F304, F316

O Ring: Viton

Gland: Stainless Steel

Stem: Stainless Steel

Stem Nut: Stainless Steel

Lever: Stainless Steel, Carbon Steel

Positioning Plate: Cast Steel

Positioning Pin: Stainless Steel

Packing: Graphite

Lower Gasket: PTFE

Ball: F304, F316

Body Gasket: Graphite+Stainless Steel

Stud Bolts: A193 B7

Nut: A194 2H

Spring: Stainless Steel

Nominal Diameter:

Nominal Pressure:

End Connection:

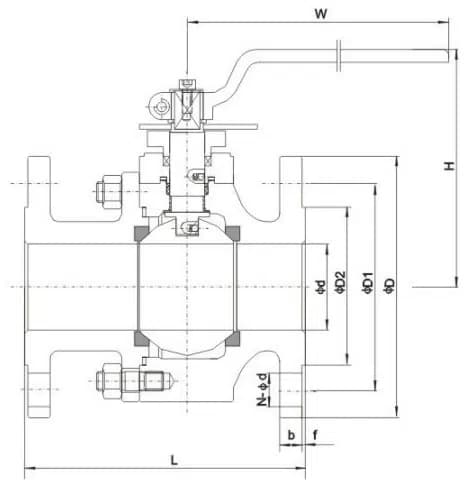

Dimension

Class150                                                          Unit: mm

DN L d D D1 D2 z-d T E
15 108 13 90 60.5 35 4-16 9 2
20 117 19 100 70 43 4-16 10 2
25 127 25 110 79.5 51 4-16 11 2
32 140 32 115 89 64 4-16 11 2
40 165 38 125 98.5 73 4-16 13 2
50 178 50 150 120.5 92 4-19 14.5 2
80 203 75 190 152.5 127 4-19 17.5 2
100 229 100 230 190.5 157 8-19 22.5 2
150 394 150 280 241.5 216 8-22 24 2
200 457 201 345 298.5 270 8-22 27 2
