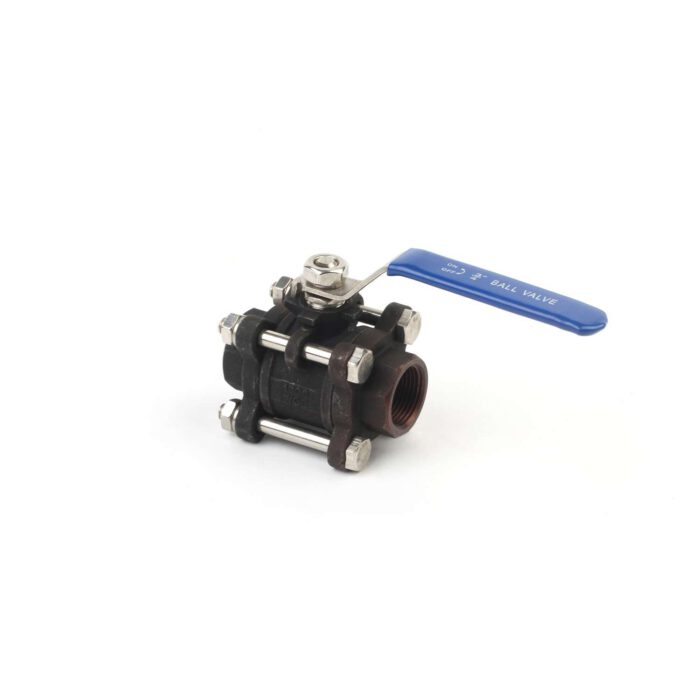

3 Piece Forged Steel Ball Valve
Body: CF8, CF8M, WCB
Ball: SS316, SS304
Seat: PTFE
Cap: CF8, CF8M, WCB
Thrust Washer: PTFE
Stem: SS316, SS304
Stem Packing: PTFE
Gland: SS304
Spring Washer: SS304
Nut: SS304
Handle Cover: PVC
Design Standard: ASME B16.34
Face to Face: DIN3202
Test and Inspection: API598
Working Temperature: -20?~150?

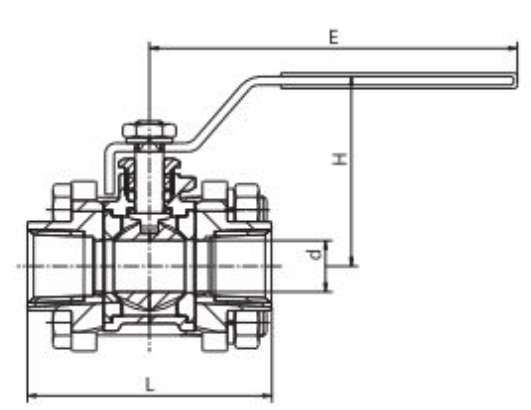

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm
| Size | d | L | H | E |
| ?? | 15 | 75 | 55 | 104 |
| ?? | 20 | 80 | 66 | 113 |
| 1? | 25 | 90 | 71 | 113 |
| 1 ?? | 32 | 110 | 81 | 145 |
| 1 ?? | 38 | 120 | 87 | 165 |
| 2? | 50 | 140 | 94 | 182 |
| 2 ?? | 64 | 185 | 119 | 220 |
| 3? | 76 | 205 | 126 | 220 |
| 4? | 100 | 240 | 159 | 280 |
