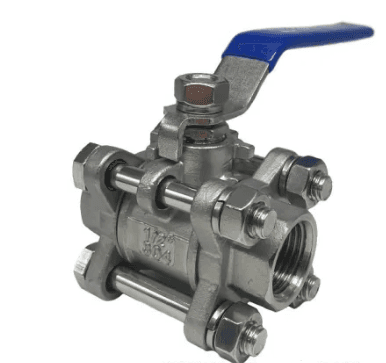

Titanium Gr.5 3pc Ball Valve
1. Body: Titanium Grade 2, Titanium Grade 5, CF8, CF8M, Cast Iron, Carbon Steel
2. Ball: SS304, SS316
3. End Cap: CF8, CF8M
4. Bolting: A193-B8
5. Seat: PTFE, RPTFE, PPL
6. Packing: Graphite, PTFE
7. Stem: SS304, SS316
8. Gland: SS304
9. Handle: SS304
10. Nut: A193-B8
Nominal Size: 1/4? to 4?
Nominal Pressure: 1000WOG to 1000PSI, 1.6 to 6.4Mpa
Connection: NPT, BSP, BSPT, DIN259/2999, SW, BW, Clamp, Flanged
Port: Full Port, Reduced Port
Handle: Lever Handle, Locking Device Handle
Operation: Manual, Pneumatic, Electric Actuated
Design Standard: ASME B16.34
Face to Face Dimension: DIN3202, EN1266
Inspection and Testing: API 598

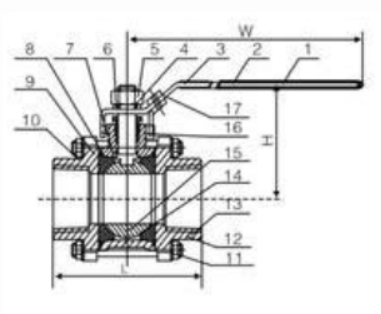

Dimension:
| SIZE | NPS | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
| DN | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
| L | 65 | 65 | 75 | 85 | 95 | 115 | 125 | 150 | 175 | 210 | 260 | |
| D | 11.6 | 13 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 80 | 100 | |
| H | 44 | 44 | 46 | 52 | 57 | 80 | 88 | 94 | 130 | 140 | 165 | |
| W | 100 | 100 | 100 | 124 | 124 | 154 | 154 | 154 | 260 | 260 | 284 | |
