Monel 3 Piece Ball Valve
| Body Material | |
| Class | |
| Size |
Monel 3 Piece Ball Valve
Body: Monel
Ball: Monel
End Cap: Monel
Seat: PTFE, RPTFE, PPL
Thrust Washer: PTFE, RPTFE, PPL
Stem Packing: PTFE, RPTFE, PPL
Gland Bush: SS304
Nominal Size: DN15 to DN150
Nominal Pressure: Class150 to Class2500, PN1.6 to PN4.0
End Type: Flanged
Operation: Handwheel, Electric Actuated, Pneumatic Actuated
Design and Manufacture: API 6D
Face to Face Dimensions: ANSI B16.10
Flange end Dimension: ANSI B16.5
Butt Welded Dimensions: ANSI B16.25
Inspection and Test: API598

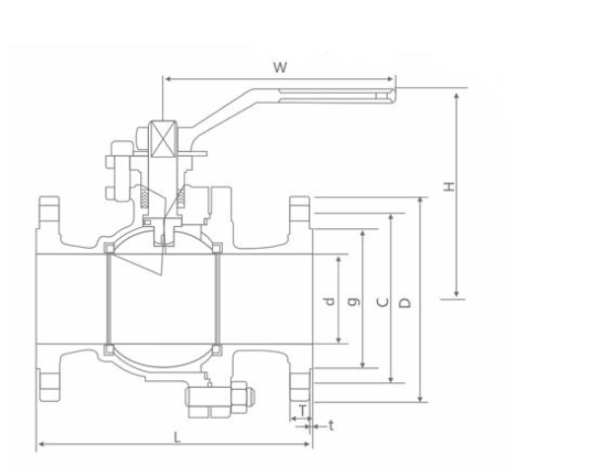

Dimensions
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
| d | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 |
| B | 16 | 18 | 18 | 18 | 18 | 18 | 18 | 190 | 229 | 254 | 279 |
| F | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 |
| D1 | 45 | 58 | 68 | 78 | 88 | 102 | 122 | 138 | 158 | 188 | 212 |
| D2 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 |
| 4-Zd | 4-?14 | 4-?14 | 4-?14 | 4-?18 | 4-?18 | 4-?18 | 4-?18 | 8-?18 | 8-?18 | 8-?18 | 8-?22 |
| H | 81 | 86 | 97 | 107 | 112 | 128 | 137 | 160 | 169 | 186 | 207 |
| E | 120 | 135 | 160 | 170 | 182 | 220 | 280 | 280 | 330 | 330 | 330 |
