Pneumatic Angle Control Valve
| Body Material | |
| Class | |
| Actuation Type | |
| Size |
Pneumatic Angle Control Valve
Body: WCB, WC6, CF8, CF8M
Bonnet: WCB, WC6, CF8, CF8M
Seat: SS304, SS316, Stellite
Plug Metal Sealing: SS304, SS316, Stellite
Plug Soft Sealing: SS304, SS316, Stellite
Cage: SS304, SS316
Guide Sleeve: SS304, SS316
Stem: SS304, SS316
Balanced Piston: Steel, Aluminium
Balanced Piston Ring: Fluorine Ring, SS+Reinforced PTFE, Flexible Graphite Ring
Nominal Size: DN20 to DN400
Pressure: PN 16 to PN 100, Class 150 to Class 600
End Connection: Flanged, RF, MF, RTJ

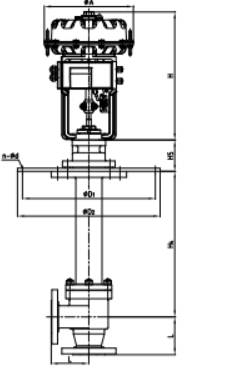

Dimensions
PN16 Unit: mm
| DN | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | 115 | 115 | 130 | 130 | 150 | 170 | 190 | 215 | 250 | 275 | 325 | 375 | 375 | 425 | 475 |
| H1 | 95 | 145 | 193 | 276 | 330 | 360 | 420 | 470 | 520 | ||||||
| H2 | 205 | 238 | 344 | 421 | 483 | 512 | 562 | 620 | 672 | ||||||
| H3 | 375 | 398 | 438 | 521 | 560 | 575 | 680 | 750 | 835 | ||||||
| H4 | 700 | _ | |||||||||||||
| H5 | 95 | 110 | _ | ||||||||||||
| D1 | 305 | 340 | 370 | 405 | 460 | 525 | 590 | 700 | 805 | 950 | _ | ||||
| D2 | 335 | 370 | 400 | 435 | 490 | 555 | 630 | 740 | 845 | 990 | _ | ||||
| H | 340 | 390 | 632 | 930 | |||||||||||
| A | 228 | 272 | 400 | 610 | |||||||||||
